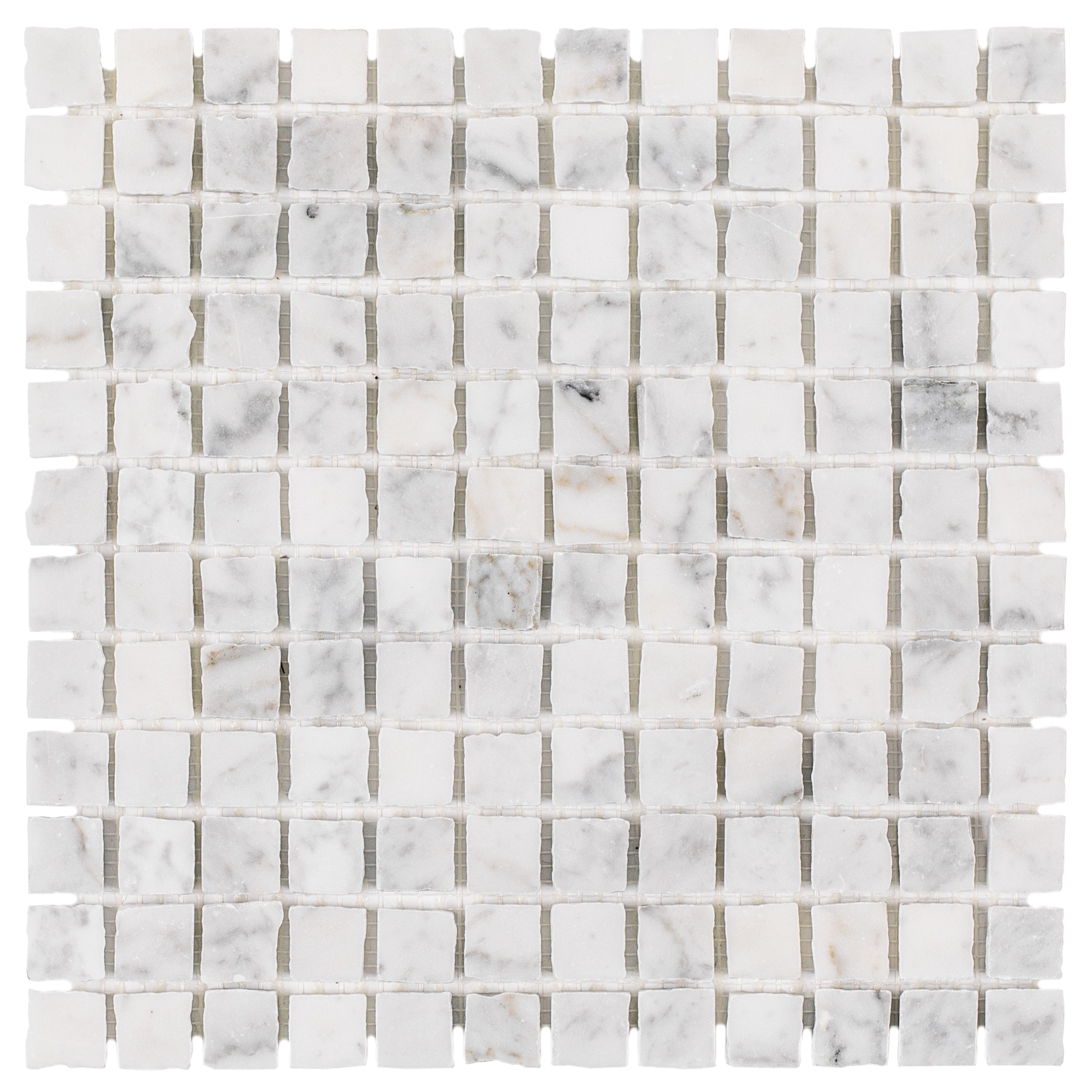

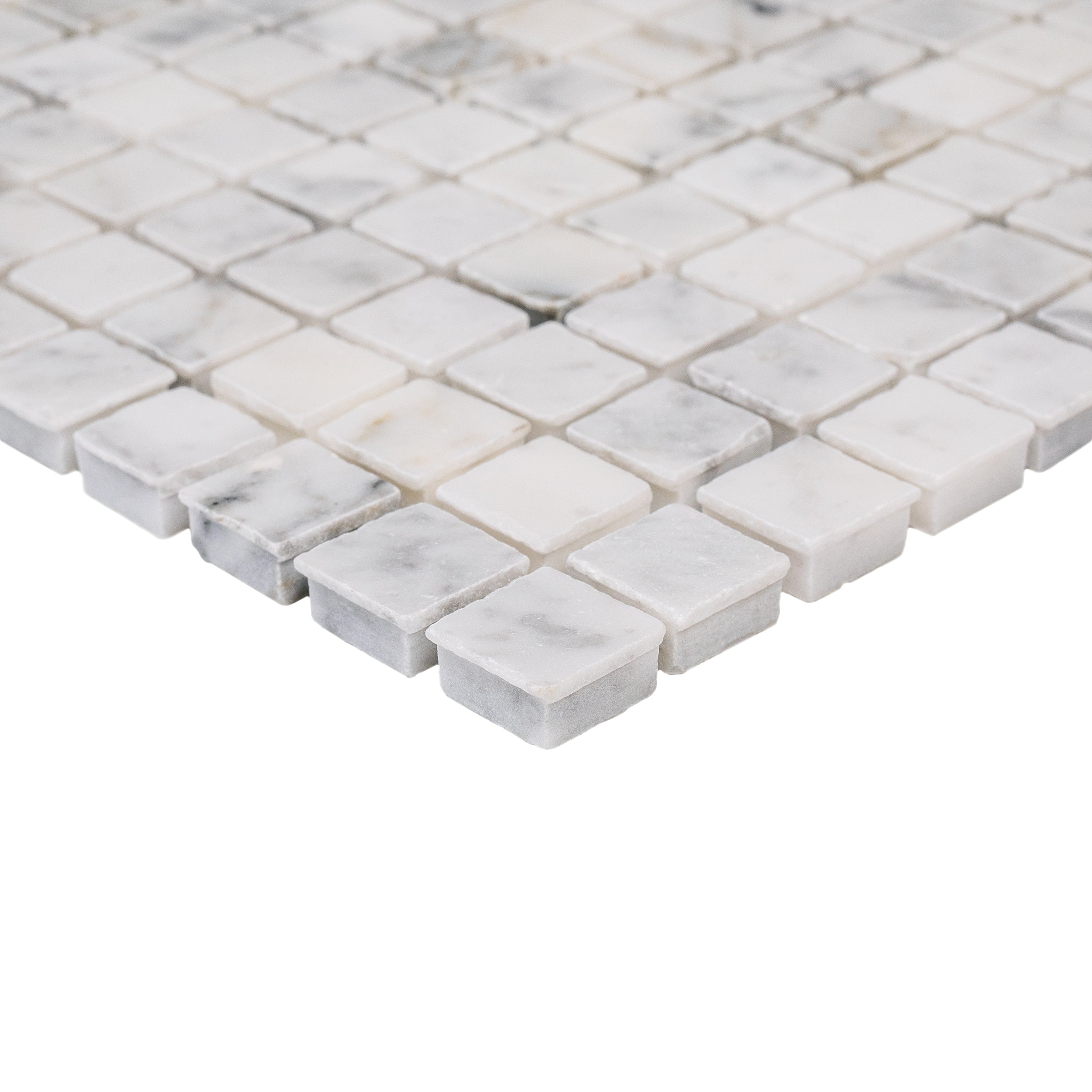

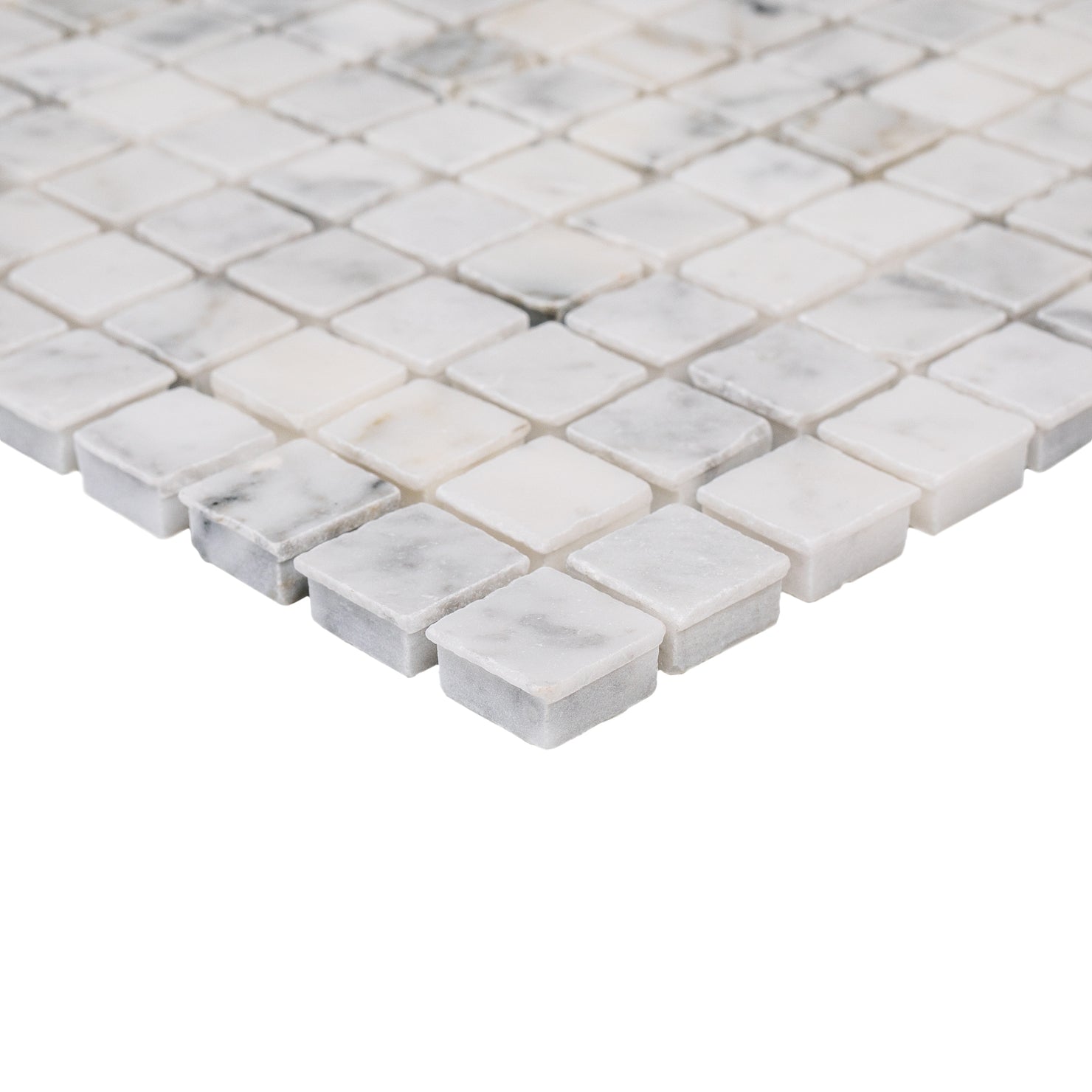

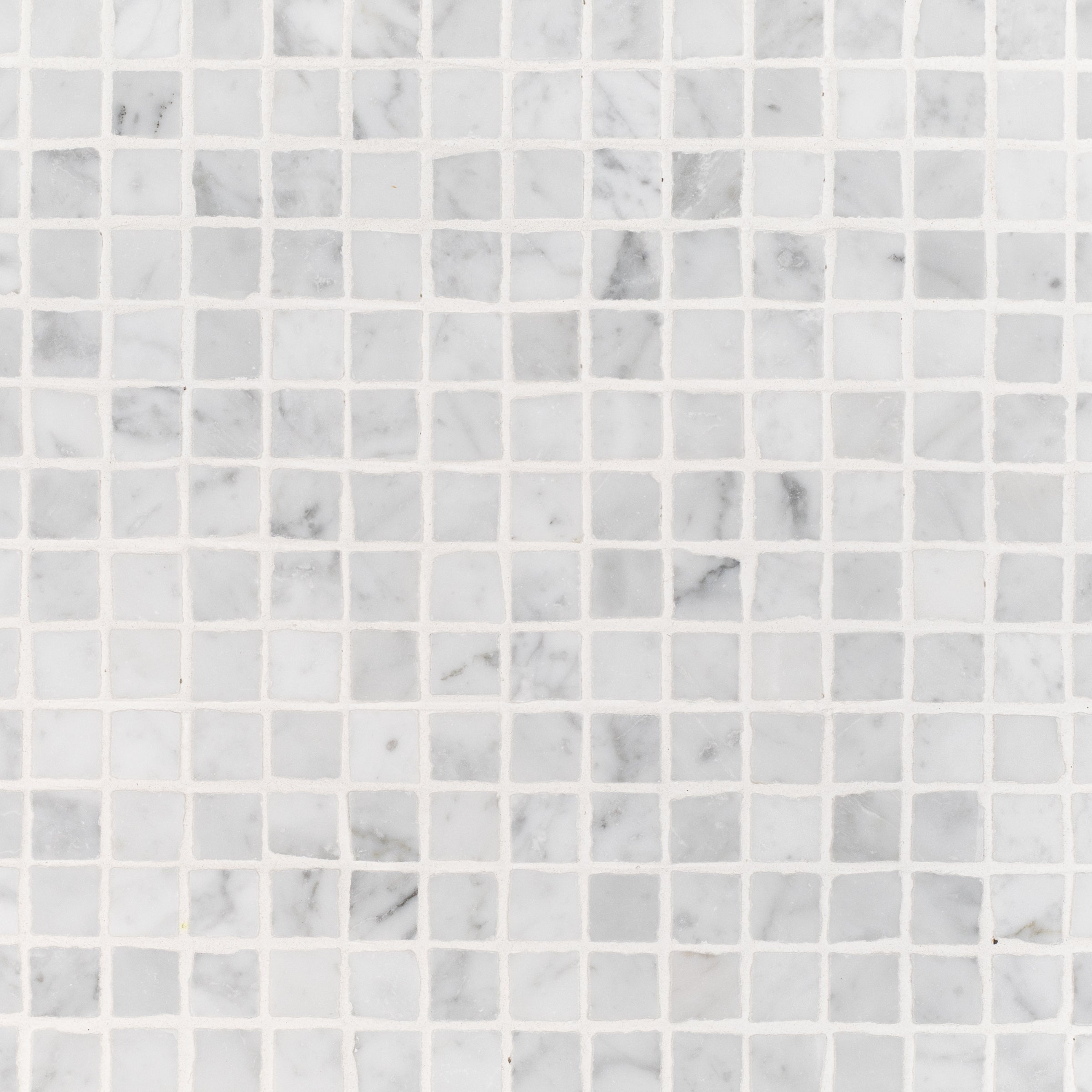

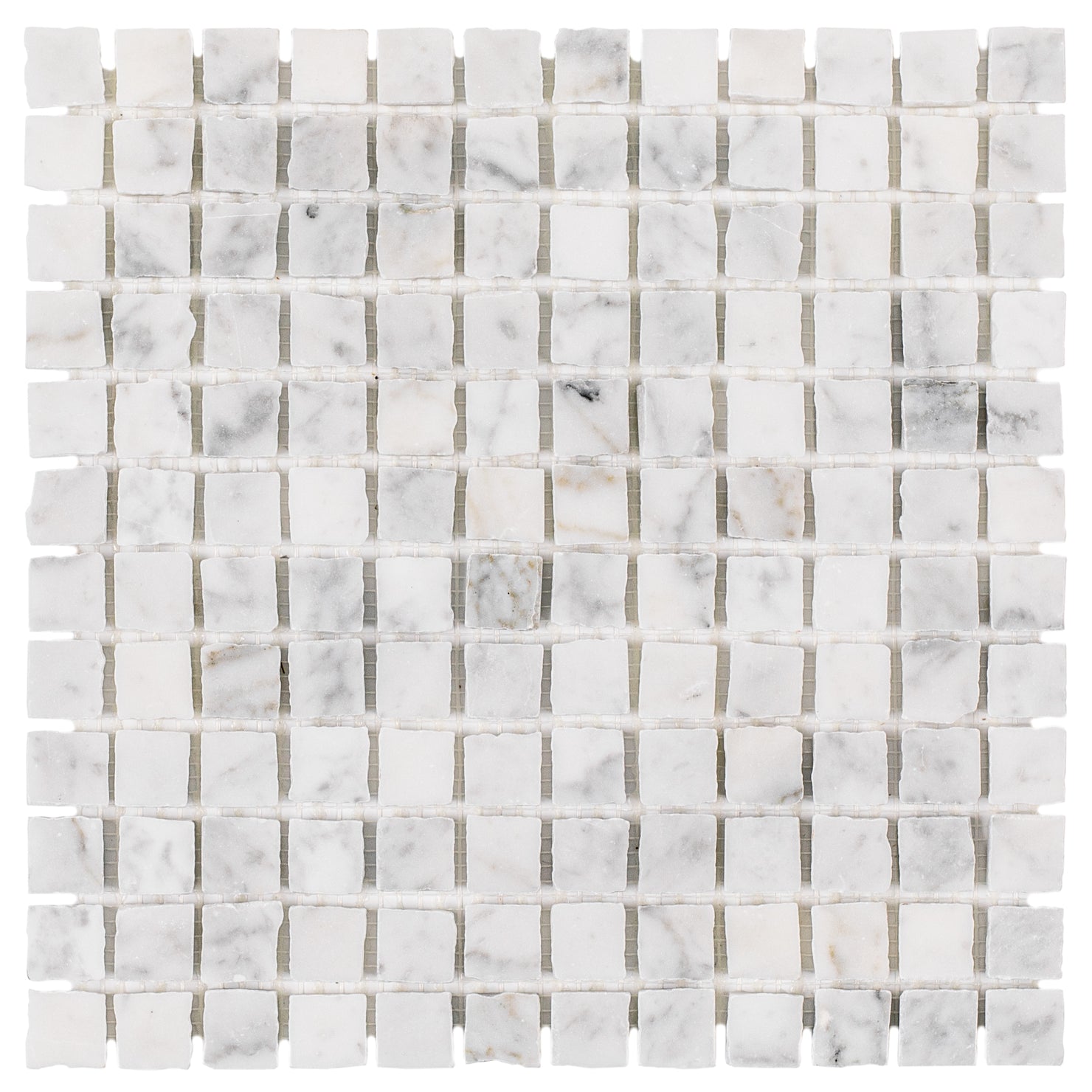

Carrara 1x1 Hand Chipped Marble Mosaic

MARBLE MOSAIC TILE INSTALLATION GUIDE

A Comprehensive Guide for DIY Homeowners and Professional Installers

BEFORE YOU BEGIN

Marble mosaics require specialized knowledge and techniques that differ from standard ceramic or porcelain tile installation. We strongly recommend working with a professional installer who has direct experience setting and sealing natural marble. Attempting installation without proper expertise can lead to staining, cracking, and other costly outcomes.

PLEASE NOTE

Reno Source provides these tiles and installation guidance, but cannot assume responsibility for the installation process itself or any issues that arise during or after installation. Following these guidelines carefully will help ensure the best possible outcome for your project.

1. OVERVIEW

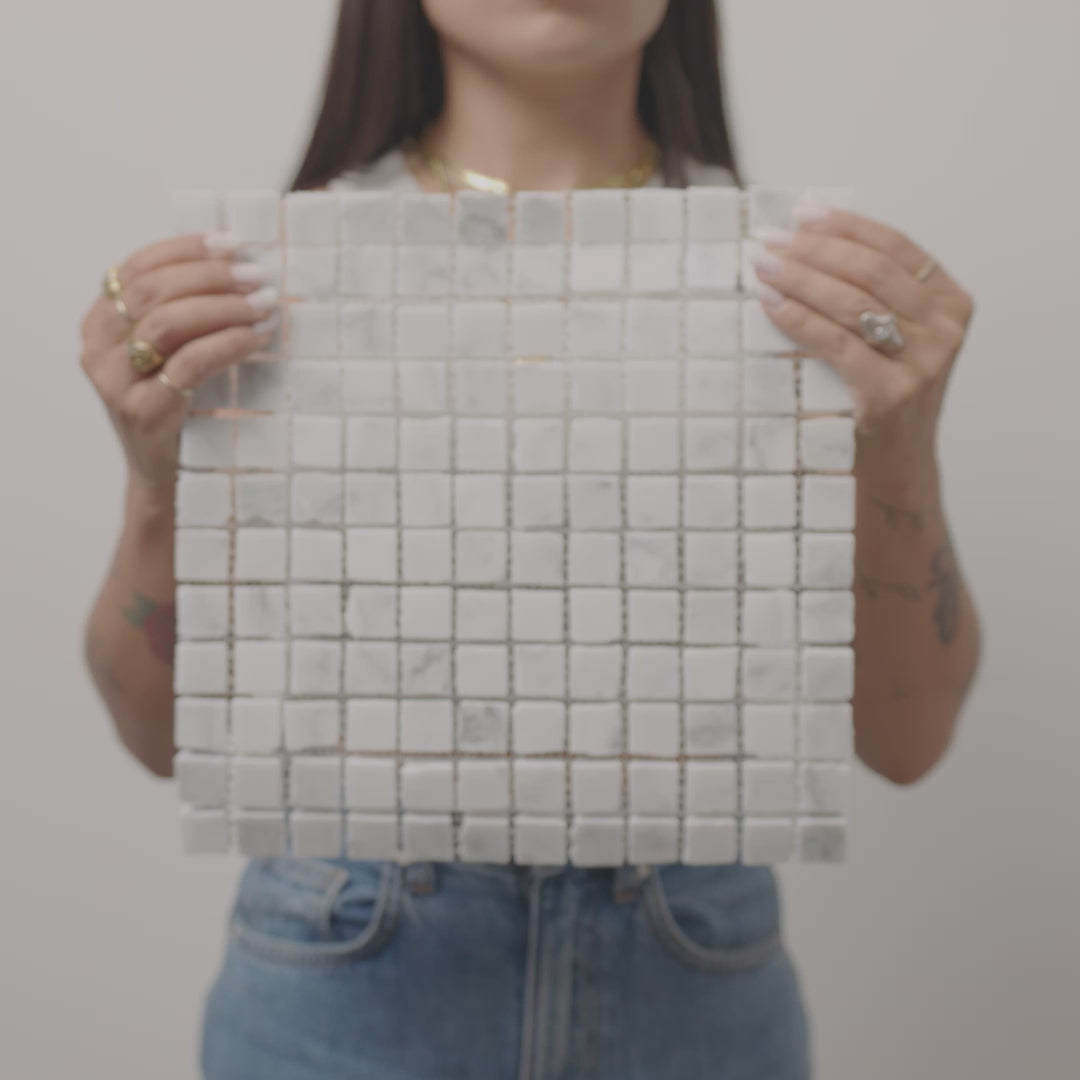

   Marble mosaics are composed of small pieces of natural marble mounted on a mesh or paper backing for easier handling and installation. These tiles bring the timeless elegance of natural stone into kitchens, bathrooms, entryways, and other spaces. Because each piece is cut from real marble, no two sheets are exactly alike. Subtle differences in veining, color, and texture are inherent to the material and part of its natural character.

   Proper installation is essential to getting the most out of marble mosaics. Unlike porcelain or ceramic tile, marble is porous, softer, and more sensitive to chemicals and moisture. The steps in this guide, from surface preparation through sealing, are designed to protect the stone and ensure a lasting, professional result.

   Natural variations to expect include color variation in tone and veining, natural pits and fissures, slight dimensional differences between pieces, and unique veining patterns throughout the installation. These characteristics are not defects but natural qualities of marble. If a perfectly uniform appearance is desired, marble mosaics may not be the right choice.

2. TOOLS AND MATERIALS

   Required tools include a notched trowel sized 1/4 inch by 1/4 inch or 3/16 inch by 3/16 inch V notch, a flat margin trowel for back buttering, a rubber grout float, a grout bag if using contrasting grout, a water cooled tile saw with diamond blade, 2 foot and 4 foot levels, measuring tape and pencil, mixing bucket and drill with paddle, sponges, clean water bucket, lint free cloths, eye protection, and an N95 dust mask.

   Materials include high quality white medium bed thinset mortar, never gray thinset, Mapei Flexcolor CQ grout or equivalent, penetrating stone sealer such as Fila Stone Sealer, pH neutral stone cleaner such as Fila Stone Clean, an appropriate substrate such as cement board or concrete, and a waterproof membrane for all wet area installations.

3. STEP BY STEP INSTALLATION

   Step 1 Inspect Your Order

   Open all boxes and inspect every sheet for shipping damage. Verify quantities and spread sheets from multiple boxes to view the full range of natural variation. Once installed, concerns related to inherent stone characteristics cannot be addressed.

   Order at least 15 to 20 percent extra material for cuts, waste, and future repairs. For more selective installations, 20 to 25 percent extra is recommended.

Step 2 Surface Preparation

The substrate must be rigid, flat, clean, and dry. Wood framed floors should use an uncoupling membrane. Flatness must be within 1/8 inch over 10 feet. Remove all dust, debris, paint, or oils. New concrete must cure a minimum of 30 days to prevent efflorescence.

For wet areas, apply a waterproof membrane over the entire surface, seal all seams and penetrations, and allow to cure fully. Never install marble directly on untreated drywall in wet areas.

Step 3 Layout Planning

Blend sheets from all boxes throughout the installation. Perform a full dry layout under the actual lighting conditions of the space. Choose grout color carefully as it significantly affects appearance. Plan all cuts and transitions in advance.

Photograph the dry layout before setting tile to maintain reference during installation.

Step 4 Setting the Tile

Mix white thinset per manufacturer instructions and allow proper slake time. Spread thinset in sections no larger than 2 by 2 feet and comb in straight lines. Lightly dampen the back of each sheet before installation. Back butter each sheet with a thin, even layer of thinset. Press sheets into place by hand, do not use a mallet. Align sheets carefully using 1/8 inch spacers unless specified otherwise. Clean excess thinset immediately.

Step 5 Cutting

All cuts must be made using a water cooled tile saw with a sharp diamond blade. Cut slowly and steadily. Always wear eye protection and an N95 mask. Perform cutting outdoors or in a well ventilated area when possible.

Step 6 Curing

Allow thinset to cure a minimum of 48 hours before proceeding. Do not apply pressure during this time. Cold or humid conditions may require longer cure times.

4. SEALING AND GROUTING

   Pre grout sealing is mandatory. Clean the surface with a pH neutral stone cleaner and allow to dry. Apply penetrating sealer in thin coats until the stone is saturated, wiping excess before it dries. Allow sealer to cure fully before grouting.

   Grout in small sections using a rubber float at a diagonal angle. Fill joints and natural pits evenly. Clean continuously with a damp sponge. Do not allow grout to dry on the marble surface. Allow grout to cure at least 48 hours.

   After grout cure, apply a final coat of sealer to protect both tile and grout. Follow manufacturer instructions for interior or exterior use.

5. FLOOR WALL AND WET AREA CONSIDERATIONS

   For floors, ensure the substrate is fully cured and use an uncoupling membrane on wood framing. For walls, install only on stable surfaces. In dry areas, marble may be installed over drywall. Never install over paint.

   For commercial or wet areas, verify slip resistance and DCOF requirements. Protect installed marble during construction. For edges, consider mitered corners or Schluter profiles.

6. TIPS AND TROUBLESHOOTING

   Always use experienced installers, blend sheets thoroughly, work slowly, clean continuously, use white thinset only, keep spare material, and always seal before grouting.

   Common issues include grout haze from delayed cleanup, efflorescence from moisture migration, tile release from poor coverage, uneven joints from misaligned sheets, staining from skipped sealing, and cracking from substrate movement.

7. CARE AND MAINTENANCE

   Sweep or vacuum regularly. Clean with a soft damp cloth and pH neutral cleaner. Wipe spills immediately. Avoid acidic cleaners, bleach, abrasive tools, ammonia, or harsh chemicals. Reseal as needed based on water absorption testing. Address grout damage or leaks promptly. Natural patina and wear are expected over time.

8. PRODUCT AND LIABILITY INFORMATION

   Reno Source provides this guide as a resource only. Responsibility for installation, material selection, and workmanship rests with the installer and homeowner. Natural variations in marble are inherent and not defects. Inspect material before installation. Installed tile is considered accepted.

   Installers should wear protective equipment when handling and cutting stone. Cutting or grinding marble may release crystalline silica dust. Follow OSHA dust control guidelines. Wash hands after handling materials.

   California Proposition 65 Warning: This product may expose you to chemicals including crystalline silica and lead, known to cause cancer and reproductive harm. More information is available at www.P65Warnings.ca.gov.
