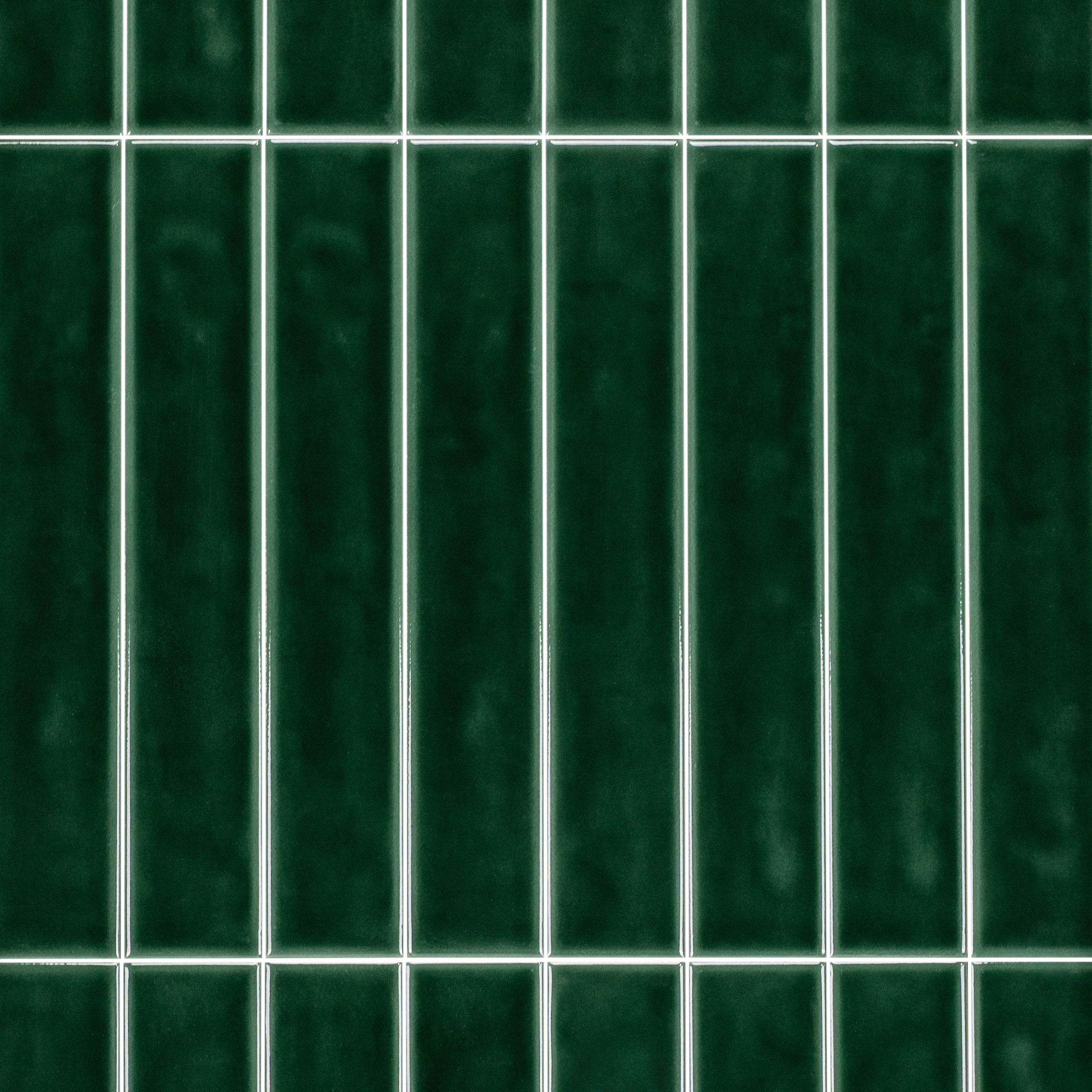

Marlowe Glossy Ceramic Tile

CERAMIC TILE INSTALLATION GUIDE

CERAMIC TILE

INSTALLATION GUIDE

A Step-by-Step Guide for Professionals and DIY Enthusiasts

BEFORE YOU BEGIN

Please read this entire guide before starting your installation. This guide provides general

recommendations and should not replace professional advice for complex installations. Reno Source

provides quality ceramic tiles and this guidance as a resource, but responsibility for the installation

process rests with the installer and homeowner.

1. OVERVIEW

Ceramic tile is one of the most reliable and versatile finish materials available. It offers durability,

low maintenance, and a timeless aesthetic that works across kitchens, bathrooms, entryways, and

living spaces. With the right preparation, most experienced installers can complete a standard room

in one to two days.

This guide walks you through each stage of a ceramic tile installation, from surface preparation

through final sealing. Follow these steps carefully and you will achieve a professional-quality result

that stands the test of time.

2. TOOLS & MATERIALS

Essential Tools

• Notched trowel (size per adhesive manufacturer recommendation)

• Rubber grout float

• Tile cutter or wet saw

• Tile nippers for curved cuts

www.therenosource.com Page 1CERAMIC TILE INSTALLATION GUIDE

• Chalk line and tape measure

• Level (48″ recommended) and carpenter’s square

• Mixing bucket and drill with paddle attachment

• Sponges and clean cloths

• Knee pads, safety glasses, dust mask, and gloves

Materials

• Ceramic tiles (order 10–15% extra for cuts and future repairs)

• Thinset mortar or tile adhesive

• Grout (sanded for joints wider than 1/8″; unsanded for narrower joints)

• Tile spacers (1/8″ to 1/4″ depending on desired joint width)

• Cement backer board and fiberglass mesh tape (if required)

• Grout sealer

3. STEP-BY-STEP INSTALLATION

Step 1: Surface Preparation

Proper surface preparation is the foundation of every successful tile installation. Investing time here

prevents cracked tiles, failing grout, and costly rework.

Clear and Clean the Area

Remove all furniture, appliances, and existing flooring. Clean the subfloor thoroughly, removing

debris, dust, adhesive residue, and paint.

Inspect and Repair the Subfloor

The subfloor must be at least 1-1/8″ thick to prevent flexing. Use a long straightedge to check for

level—variations greater than 1/8″ over 10 feet should be corrected with self-leveling compound.

Repair any cracks, holes, or damaged areas before proceeding.

Install Backer Board (If Needed)

For plywood subfloors or moisture-prone areas, install cement backer board to create a rigid,

moisture-resistant base. Secure with appropriate screws and tape all seams with fiberglass mesh

tape.

Step 2: Planning and Layout

A well-planned layout produces symmetrical, professional-looking results and minimizes waste.

Never skip this step.

1. Measure and mark the midpoint of each wall. Snap chalk lines connecting opposite

midpoints. The intersection is your starting point.

2. Dry-fit tiles along the chalk lines from center to walls without adhesive. Include spacers

between tiles to preview the layout and identify where cuts will fall.

3. Adjust the layout so tiles at walls are at least half a tile width. Small slivers look

unprofessional and are difficult to cut. Shift your starting point as needed for balance.

www.therenosource.com Page 2CERAMIC TILE INSTALLATION GUIDE

4. Consider tile placement around doorways and focal points before committing to your layout.

Step 3: Applying Thinset Mortar

Proper adhesive application is critical for a lasting installation. Work methodically in small sections.

1. Mix thinset mortar per manufacturer instructions to a smooth, peanut butter-like

consistency. Let it slake (rest) for 10 minutes, then remix briefly.

2. Using the flat side of your notched trowel, spread a thin layer onto a 3′ × 3′ section. Do not

cover your layout lines.

3. Hold the trowel at a 45° angle and comb through the mortar to create uniform ridges. These

ridges ensure proper adhesion and allow air to escape.

4. Work quickly—most thinset remains workable for only 15–20 minutes. Only spread as much

as you can tile within this window.

Step 4: Setting the Tiles

With adhesive applied, set tiles carefully and methodically.

1. Begin at the center intersection. Press the first tile firmly into the thinset with a slight

twisting motion to ensure full contact.

2. Insert spacers at each corner to maintain consistent joint width. Most ceramic tiles use 1/8″

to 1/4″ spacers.

3. Continue setting tiles outward from the center, one section at a time. Never slide tiles into

position—this pushes adhesive into the joints.

4. Check frequently with a level to ensure tiles are flat and even. Adjust by pressing down or

adding thinset as needed.

5. Mix tiles from several boxes as you work to blend any color variation naturally across the

installation.

IMPORTANT

Maintain uniform spacing between all tiles. Proper grout joint width allows for expansion and

prevents cracking. Resist the urge to push tiles closer together.

Step 5: Cutting Tiles

Most installations require cut tiles at walls and around obstacles. Choose the right method for each

situation.

Straight Cuts

Use a manual snap cutter or wet tile saw. Score the surface with firm, even pressure and snap along

the scored line. Smooth rough edges with a rubbing stone.

Curved and Notched Cuts

For cuts around pipes or fixtures, use tile nippers to remove small pieces at a time. Work gradually

toward your marked line. A rod saw handles longer curved cuts.

www.therenosource.com Page 3CERAMIC TILE INSTALLATION GUIDE

SAFETY

Always wear safety glasses when cutting tiles. Cut edges can be sharp—handle carefully and smooth

as needed before installation.

Step 6: Grouting

Allow thinset to cure for at least 24 hours before grouting. Do not walk on the tiles during this time.

1. Remove all tile spacers. Mix grout per manufacturer directions to a smooth, thick

consistency.

2. Using a rubber grout float held at 45°, spread grout diagonally across the tile surface, forcing

it deep into the joints.

3. 4. Scrape excess grout by tilting the float to 90° and moving diagonally across the tiles.

Wait 15–20 minutes for the grout to begin setting, then wipe the surface with a damp sponge

in circular motions. Rinse the sponge frequently.

5. After the grout has fully cured (typically 24–72 hours), buff away remaining haze with a dry

cloth.

Step 7: Sealing and Finishing

Sealing protects your grout from moisture, stains, and mildew. This final step extends the life of your

installation.

1. Wait for grout to fully cure per manufacturer recommendations—typically 48 to 72 hours.

2. Apply grout sealer using a small brush applicator directly on the grout lines, or spray over the

entire surface if using a spray sealer.

3. Allow the sealer to penetrate for the time specified by the manufacturer, then wipe any excess

from the tile surface.

4. Reapply sealer annually or as recommended to maintain protection.

4. TIPS & WARNINGS

Pro Tips

• Never skip the dry-fit layout. It prevents costly mistakes and ensures professional results.

• Back-butter large tiles (apply thinset to both the floor and tile back) for complete coverage

and stronger adhesion.

• Clean grout residue promptly—dried grout haze is significantly harder to remove.

• Allow proper curing time at each stage. Rushing is the most common cause of installation

failure.

• Keep spare tiles from your installation for future repairs.

Safety Precautions

• Always wear appropriate PPE: safety glasses, gloves, knee pads, and a dust mask when

cutting tiles.

• Work in well-ventilated areas, especially when cutting.

www.therenosource.com Page 4CERAMIC TILE INSTALLATION GUIDE

• Keep tools and materials away from children.

• Follow all manufacturer safety guidelines for equipment and materials.

When to Call a Professional

For installations involving structural modifications, waterproofing (showers, wet rooms), radiant

floor heating systems, or subfloor repairs, we strongly recommend consulting a licensed contractor

or tile installation professional. Complex projects may require permits and inspections—check your

local building codes before beginning work.

5. CARE & MAINTENANCE

Ceramic tile is low-maintenance by nature, but a few simple habits will keep your installation looking

its best for years.

• Sweep or vacuum regularly to prevent grit buildup that can scratch the glaze over time.

• Mop with a pH-neutral tile cleaner and warm water. Avoid excessive water.

• Wipe up spills promptly, especially on grout lines.

• Reseal grout annually or as recommended by the sealer manufacturer.

• Use felt pads under furniture legs and place mats at entryways to reduce wear.

AVOID

Do not use acidic cleaners (vinegar, citrus-based products), bleach, ammonia, or abrasive scrubbers

on ceramic tile or grout. These products can damage the finish and degrade the grout over time.

6. PRODUCT & LIABILITY INFORMATION

Ceramic tiles vary by manufacturer, production batch, and composition. Always test adhesives,

grouts, and sealers on a sample area before full application. Results may differ based on

environmental conditions, substrate type, and installation technique. Refer to specific product

documentation for detailed instructions.

This guide is provided for informational purposes only. Reno Source and its authors assume no

responsibility for injuries, damages, or losses resulting from the use of this information. Users

assume all risks associated with tile installation. Always prioritize safety and consult qualified

professionals when in doubt.
