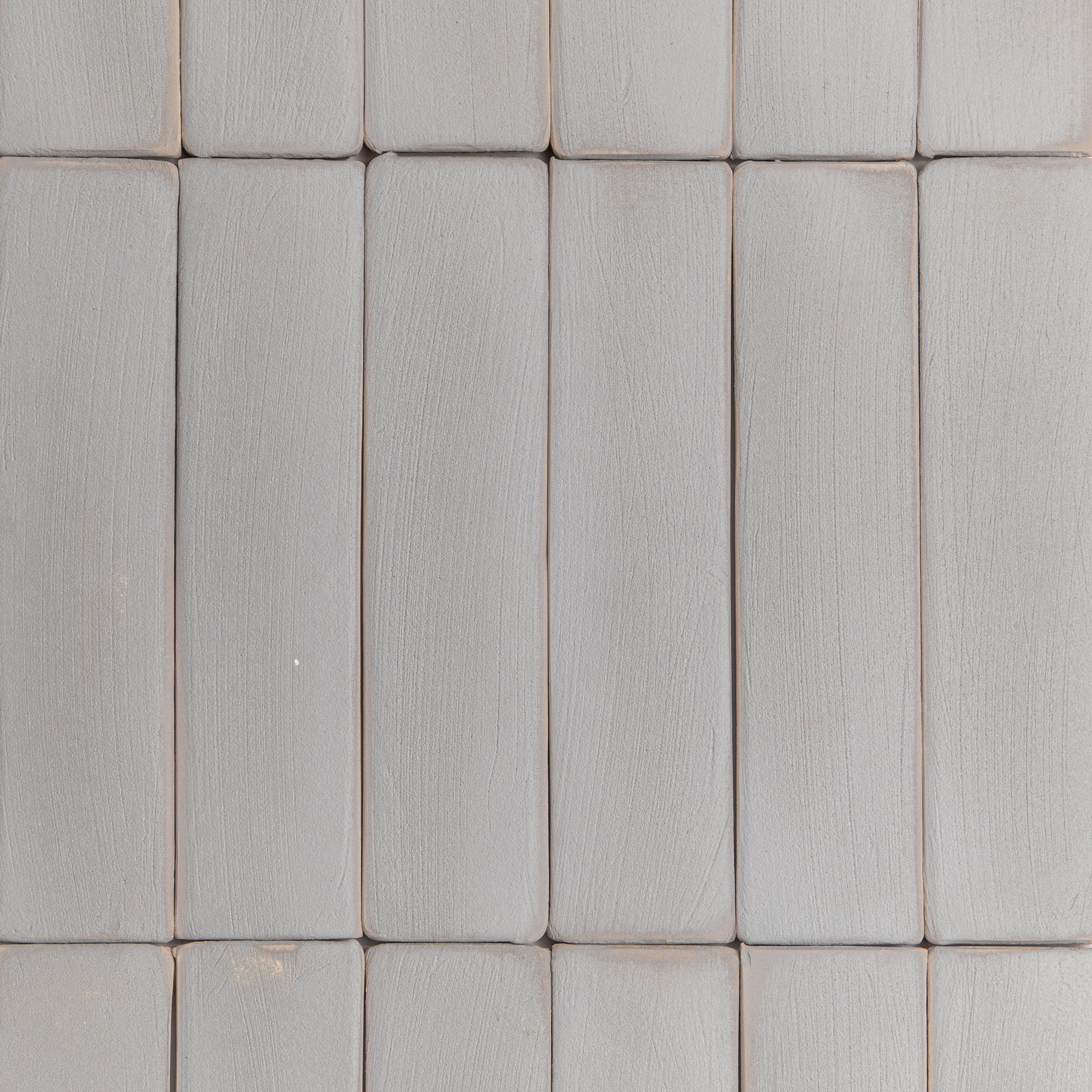

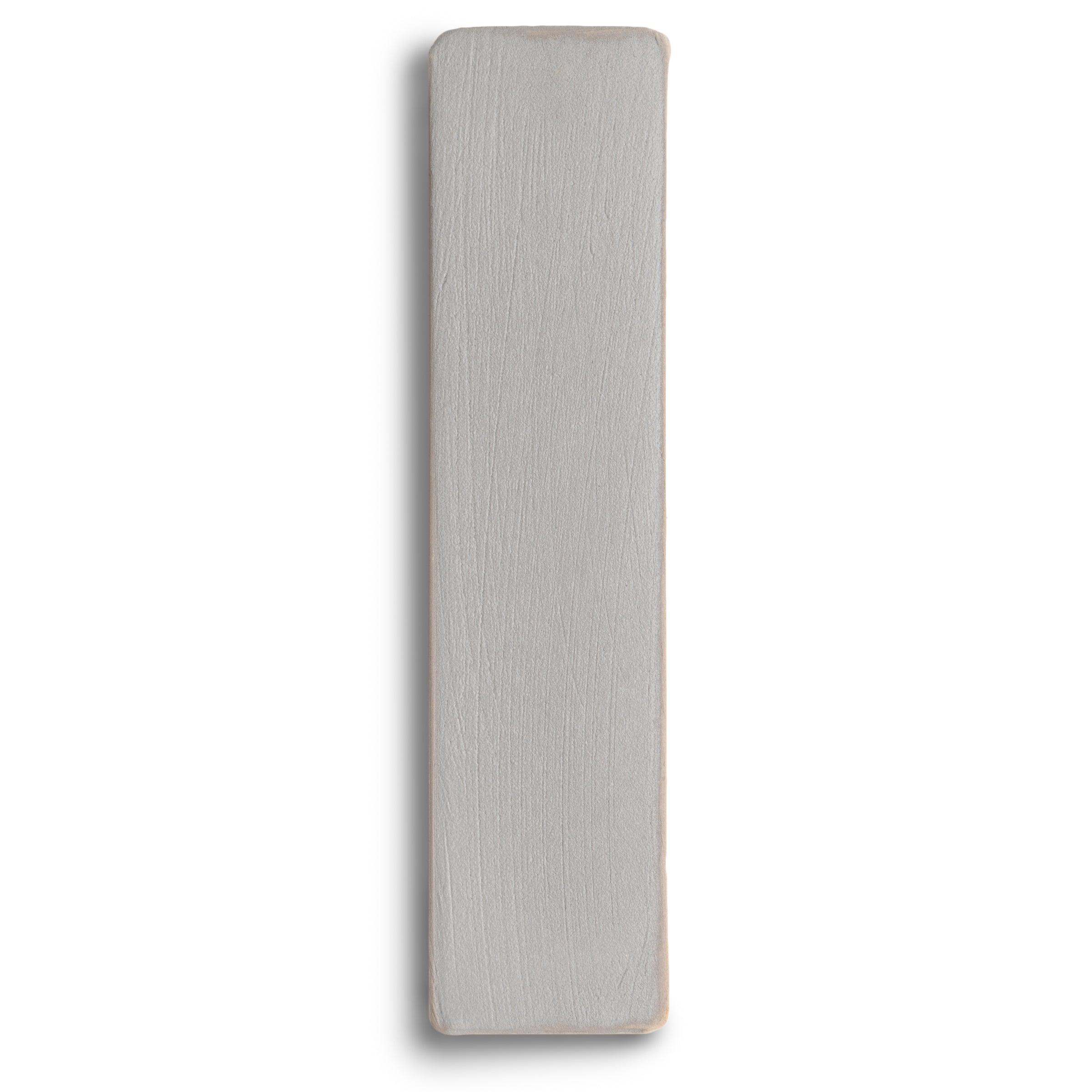

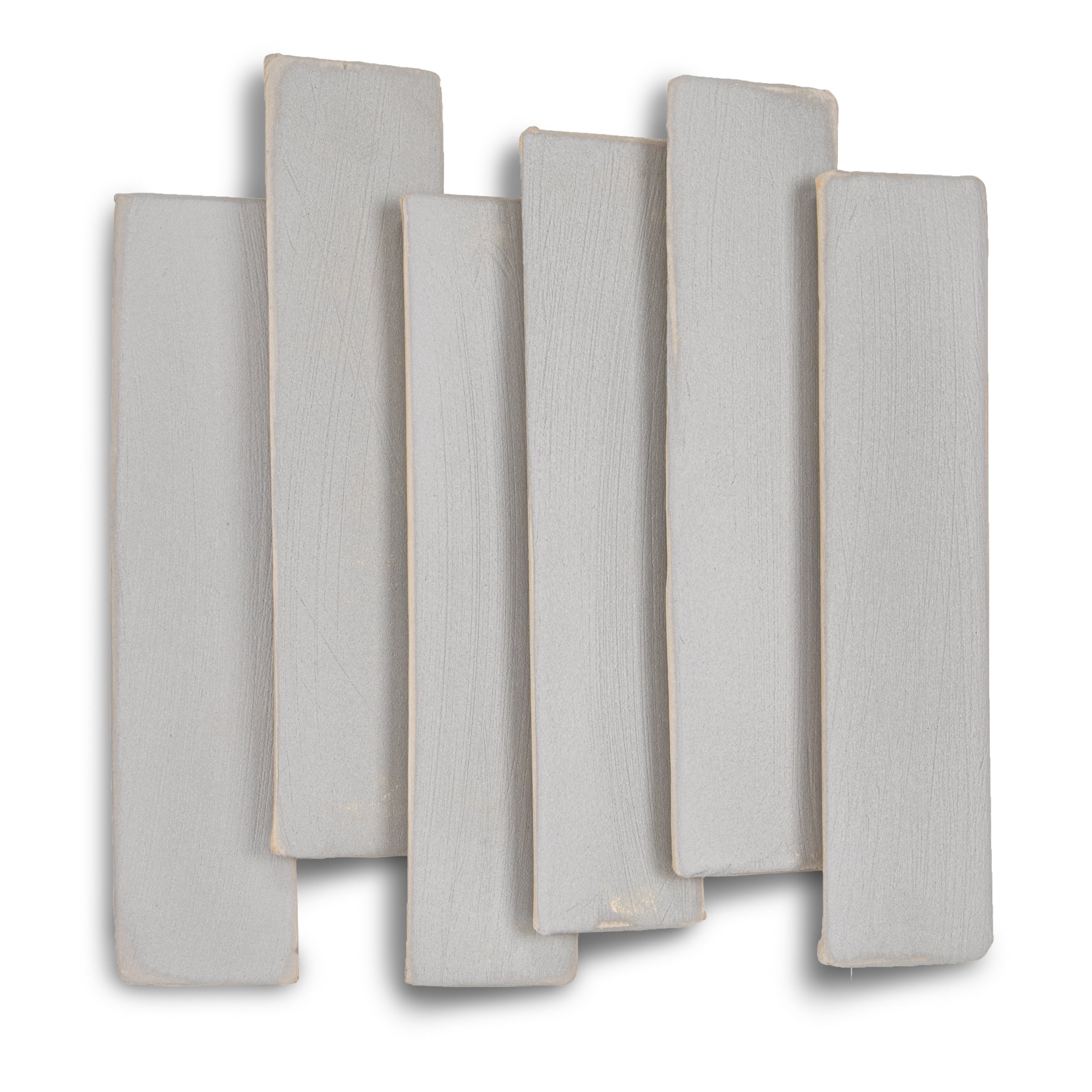

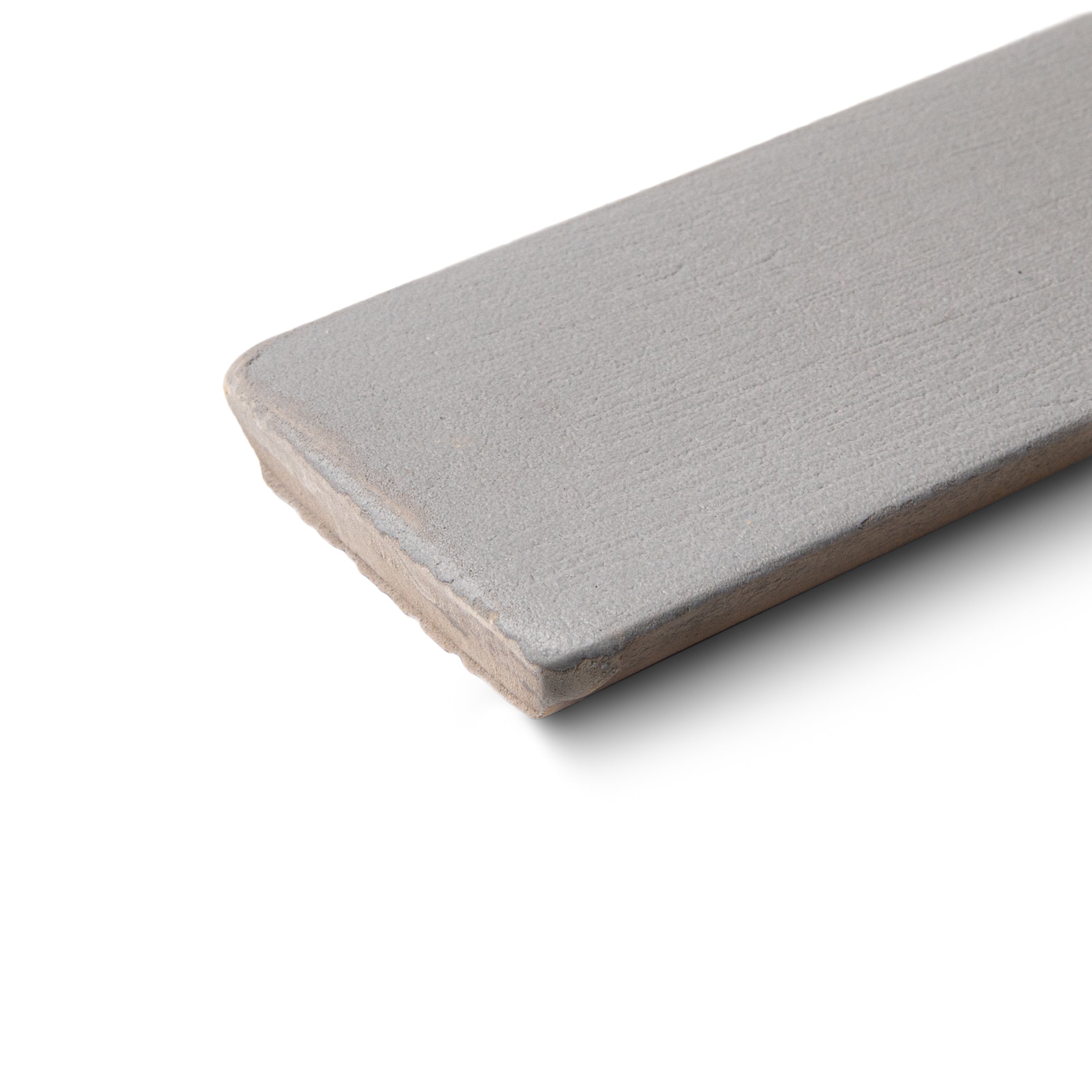

Grey Cotto Antico Terracotta Tile

TERRACOTTA TILE INSTALLATION GUIDE

A Professional Guide to Handcrafted Clay Tile Installation

Reno Source

www.therenosource.com

BEFORE YOU BEGIN

Artisanal terracotta tile installation requires experience with handmade, porous materials. If you are new to tile installation, we strongly recommend hiring a professional installer with terracotta experience. We are here to provide beautiful tile, but what happens next depends on you and your installer. The guidelines below exist for good reason, skipping steps often leads to costly repairs.



1. OVERVIEW

Terracotta tiles, also known as cotto tiles, are handcrafted clay tiles valued for their natural warmth, character, and timeless appearance. Unlike manufactured tile, terracotta is porous and requires specialized installation techniques, especially during sealing and grouting, to ensure durability and long-term performance. This guide covers the full process from surface preparation through final finishing.

Inspection and Ordering

Inspect all tiles upon delivery for damage, color variation, and sizing. Order 15 to 20 percent overage to account for cuts, breakage, and future repairs. Handmade tiles vary in size, typically within a 5 to 8 millimeter tolerance, which is normal and part of their character. Blend tiles from multiple boxes during installation to ensure even color distribution.

Quick Reference

Overage to Order: 15 to 20 percent

Concrete Cure Time: Minimum 28 days

Grout Joint Width: 1/8 inch to 3/8 inch, 3 to 10 millimeters

Trowel Size: 1/2 inch by 1/2 inch square notch

Thinset Cure Time: 24 to 48 hours before sealing

Pre Grout Sealer Coats: 2 to 3 coats until saturated

Grout Cure Time: 24 to 72 hours

Full Cure Before Heavy Use: 7 days

Reseal Frequency: Every 1 to 3 years



2. TOOLS AND MATERIALS



Required Tools

Water cooled wet saw with diamond blade. Notched trowel, 1/2 inch by 1/2 inch square notch. Margin trowel for back buttering. Soft rubber mallet. Four foot level. Grout float. Buckets and sponges. Paint brushes or rollers for sealer application. Clean cloths. Safety glasses, gloves, knee pads, and respirator.

Materials

Thinset mortar should be a cement based flexible adhesive rated C2 TE S1. White thinset is recommended. Neutral cleaner such as Fila Cleanall. Penetrating sealer such as Fila MP90 Eco Plus. Grout should be sanded for joints 1/4 inch or wider and unsanded for narrower joints, using a neutral color. Optional finishing wax such as Fila Protective Wax in matte or satin. Tile spacers sized for the desired joint width.



3. STEP BY STEP INSTALLATION



Step 1 Surface Preparation

The subfloor must be clean, level, dry, and structurally sound. Terracotta tiles are heavy and require a stable substrate.

For concrete subfloors, new concrete must cure for a minimum of 28 days. Moisture content should be below 4 percent. Clean thoroughly to remove dust, debris, oils, and curing compounds. Fill cracks and level uneven areas with an appropriate patching compound.

For wood subfloors, install cement backer board a minimum of 1/4 inch thick using thinset and screws. Ensure the assembly meets deflection requirements of at least L 360.

Leveling should be done using a self leveling compound as needed. The surface should be flat within 1/8 inch over 10 feet. Grind high spots and fill low spots as required.

In wet areas such as bathrooms or kitchens, apply a liquid or sheet waterproofing membrane according to manufacturer instructions and allow it to fully cure before proceeding.

Step 2 Layout and Planning

Begin layout from the center of the room and work outward. Use spacers to simulate grout joints. Blend tiles from multiple boxes to distribute color variation evenly. Avoid narrow cuts at edges, ideally keeping cuts larger than half a tile. Plan transitions at doorways and changes in flooring. Due to size variation in handmade tiles, wider grout joints are recommended, typically between 1/8 inch and 3/8 inch.

Step 3 Cutting

Always use a water cooled wet saw with a diamond blade designed for natural stone or terracotta. Do not use snap cutters or dry cutting methods, as terracotta will chip or crack. Mark cut lines clearly on the tile face. Ensure adequate water flow to the blade. Feed the tile slowly without forcing it. Support the tile fully during cutting. Rinse cut tiles immediately to remove slurry and allow edges to dry completely before installation. Cutting creates slurry that can stain unprotected tile surfaces, so tiles should be cleaned immediately after cutting.

Step 4 Installation

Apply thinset to the subfloor using a 1/2 inch by 1/2 inch square notched trowel. Work in sections small enough to stay within the mortar’s open time, usually 15 to 20 minutes. Hold the trowel at a 45 degree angle to create even ridges. Back butter each tile by applying a thin layer of thinset to the back using a margin trowel. This step is essential for porous terracotta and ensures full adhesive coverage.

Set tiles by pressing them firmly into the thinset with a slight twisting motion. Use a soft rubber mallet to gently tap tiles into place. Check for level frequently and adjust spacing as needed due to size variation. Insert spacers between tiles. Remove any excess thinset immediately, as dried mortar is very difficult to remove from terracotta. Allow the installation to cure for 24 to 48 hours before walking on the tiles or proceeding to sealing. Humid conditions may require additional curing time.

Step 5 Sealing Before Grouting

Terracotta tiles must be sealed before grouting. Failure to do so will result in permanent staining from grout pigments penetrating the porous tile surface. Clean tiles thoroughly and ensure they are completely dry. Apply a generous coat of penetrating sealer using a brush or roller. Allow the sealer to penetrate for 15 to 30 minutes, then wipe away any excess that has not absorbed. Allow the surface to dry for a minimum of 4 hours. Apply 2 to 3 additional coats until the tiles are fully saturated and no longer absorb sealer. Wait 24 hours before grouting.

To test seal effectiveness, apply a few drops of water to the tile surface. If water beads and does not absorb, the seal is adequate. If water absorbs, apply additional coats.

Step 6 Grouting

Select a neutral grout color that complements the terracotta. Cream, tan, or terracotta toned grouts typically work well. Mix grout according to manufacturer instructions to a peanut butter like consistency. Using a grout float held at a 45 degree angle, work grout diagonally into joints. Ensure joints are fully filled with no voids. Allow grout to firm slightly for 10 to 20 minutes, then wipe diagonally with a damp sponge, rinsing frequently. Allow grout to cure for 24 to 72 hours before applying the final seal.

Step 7 Final Finishing

After grout has fully cured, apply a final coat of penetrating sealer or finishing wax to the entire surface, including grout joints. This provides added protection and enhances the natural appearance of the tile. For a traditional soft sheen, an optional protective wax can be applied and buffed to the desired finish. Wax will deepen the color and add protection. Allow the floor to cure for 7 days before heavy use or placing furniture. Avoid moisture and rugs during this period.

4. TIPS AND WARNINGS

Always pre seal before grouting, this is the most important step in terracotta installation. Back butter every tile to ensure proper adhesion. Blend tiles from multiple boxes throughout installation. Clean thinset and grout immediately from tile surfaces. Use wider grout joints to accommodate size variation. Test sealers and grouts on spare tiles before full installation. Keep spare tiles for future repairs.

Troubleshooting

Grout staining is typically caused by failure to seal before grouting and may be permanent. Efflorescence appears as white powder caused by mineral migration and can be cleaned with a pH neutral cleaner followed by resealing. Hollow sounds indicate poor adhesive bond and require tile removal and reset. Cracked tiles are usually caused by subfloor movement or impact and should be replaced after addressing the structural issue. Sealer haze results from applying sealer too thick or on a damp surface and can often be resolved by buffing or stripping and resealing.



5. CARE AND MAINTENANCE

Sweep or vacuum regularly to remove dirt and grit. Mop with a pH neutral cleaner diluted in warm water. Use minimal water and dry the floor after mopping. Blot spills immediately rather than rubbing. Avoid acidic cleaners, bleach, ammonia, steam cleaners, abrasive pads, or harsh chemicals.

Depending on traffic, reseal terracotta floors every 1 to 3 years. If water no longer beads on the surface and instead absorbs, resealing is required.



6. PRODUCT AND LIABILITY INFORMATION

This guide is provided for informational purposes only. Reno Source provides quality terracotta tiles but is not responsible for installation methods, material choices, workmanship, or maintenance. The installer and homeowner assume all responsibility for installation outcomes. When in doubt, consult a professional installer with terracotta experience.
