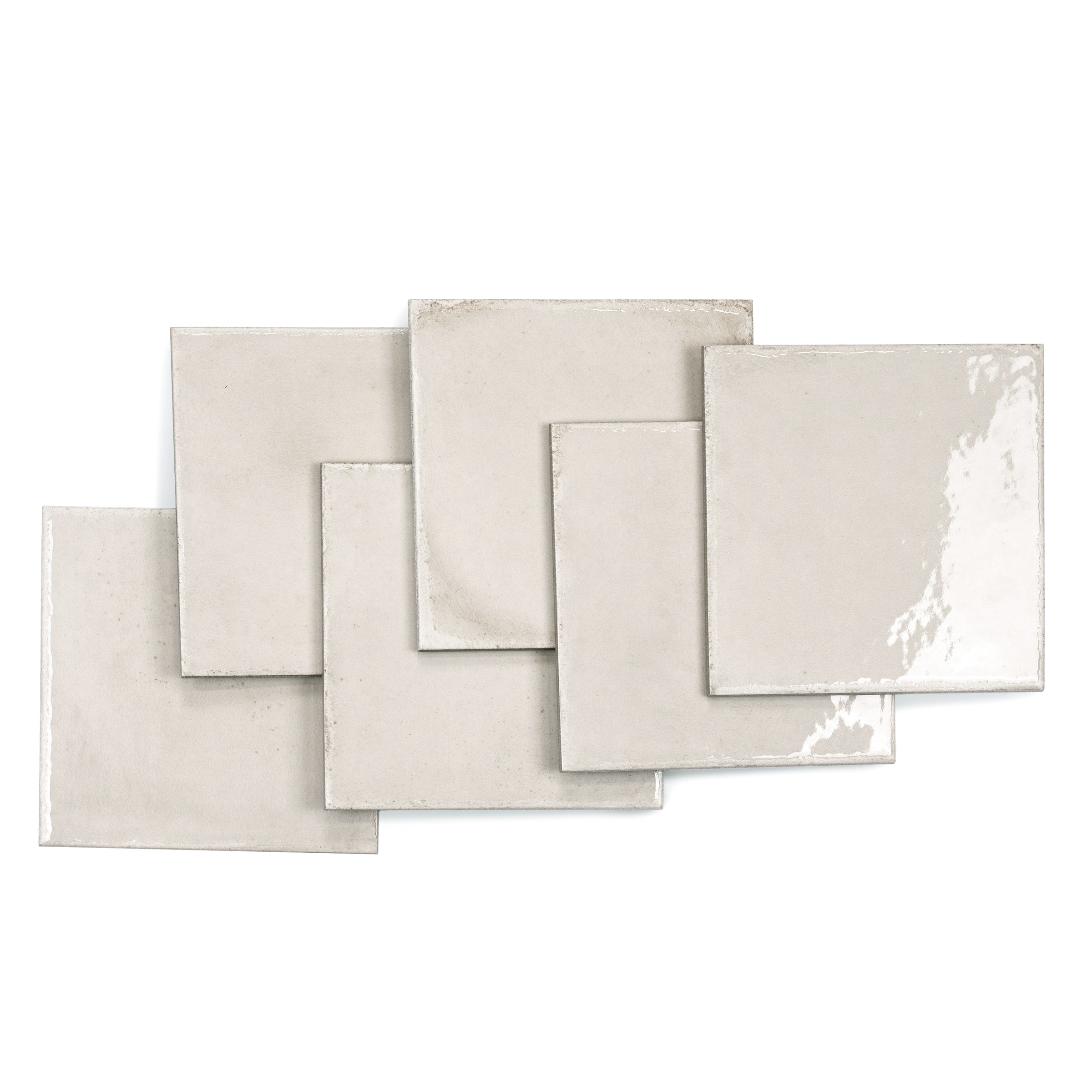

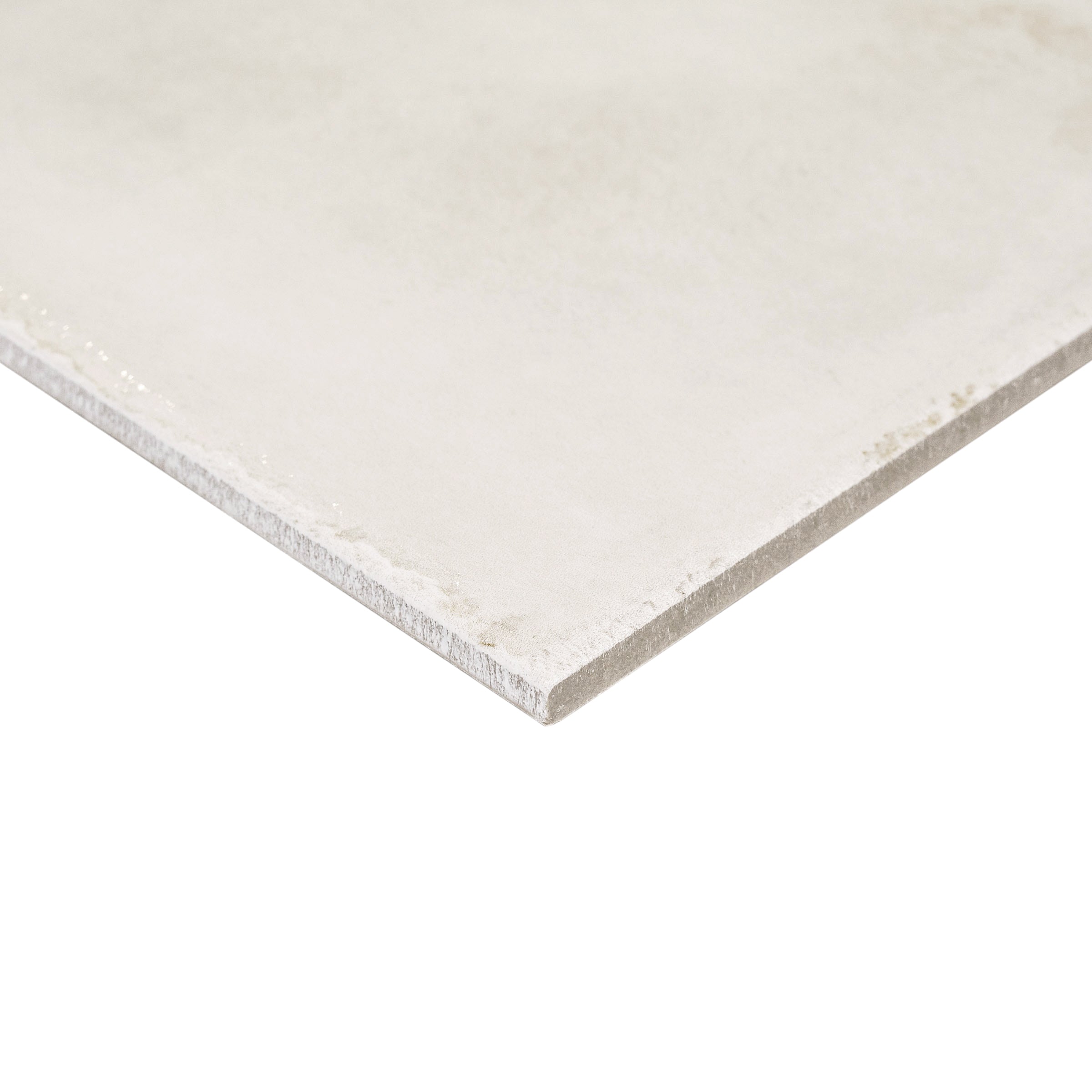

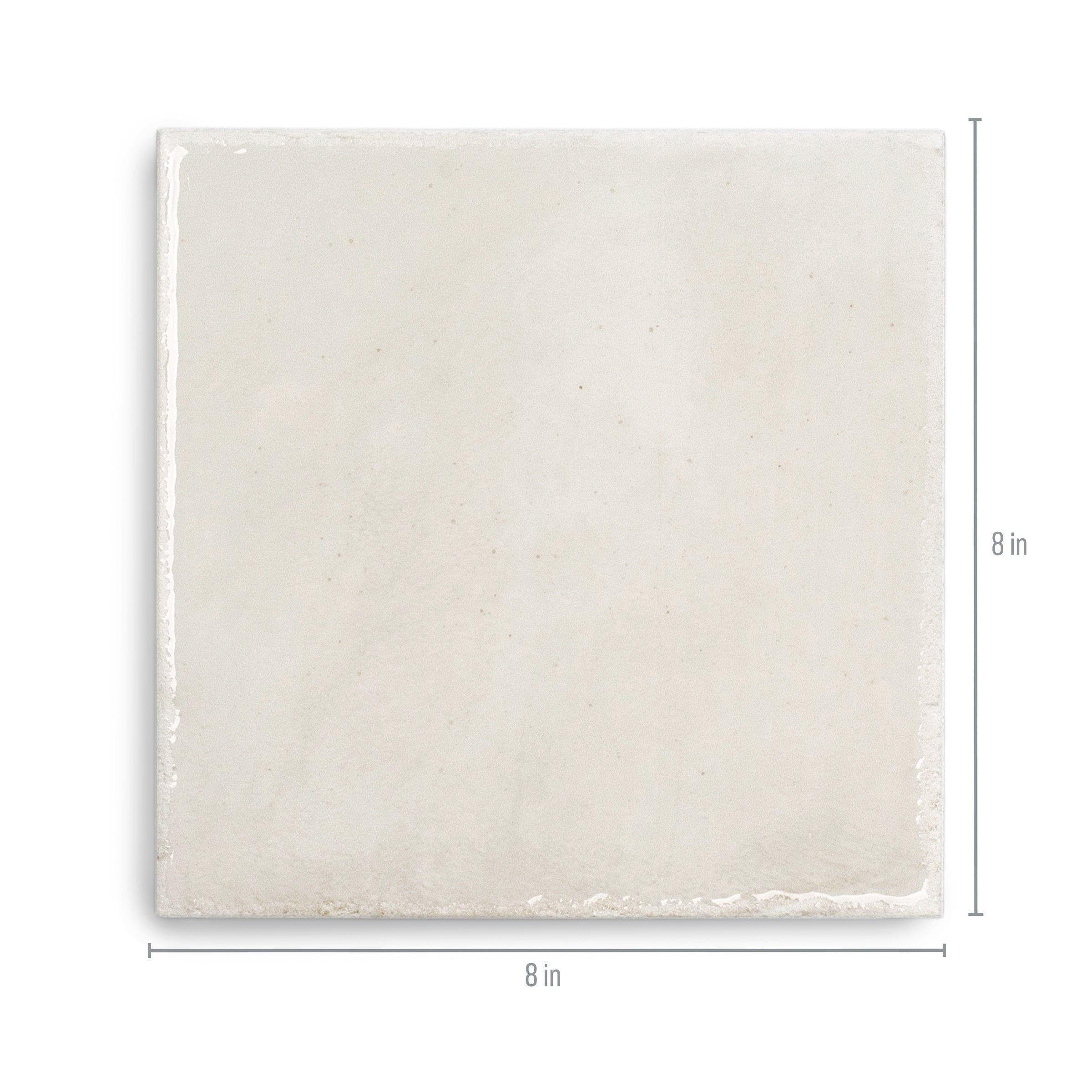

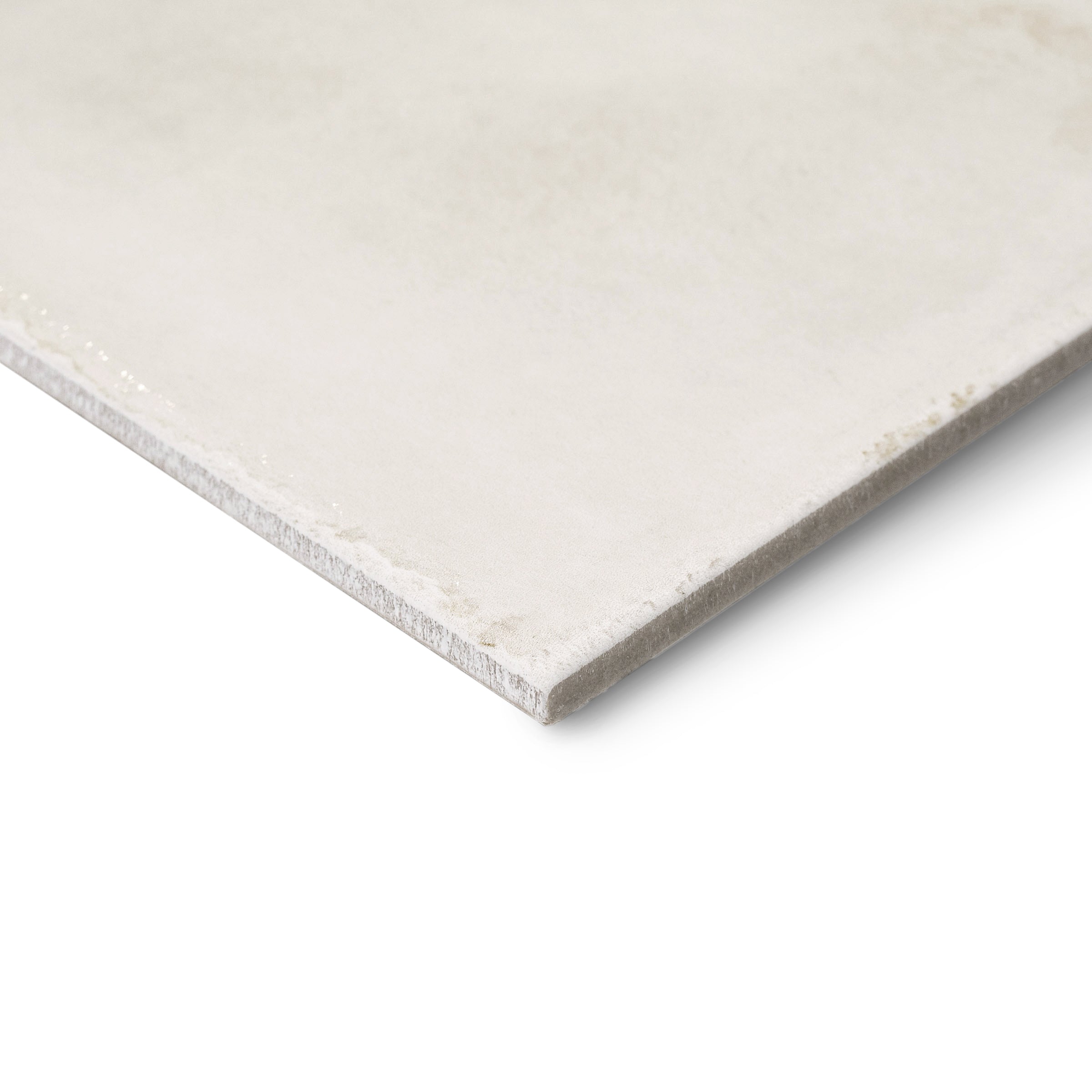

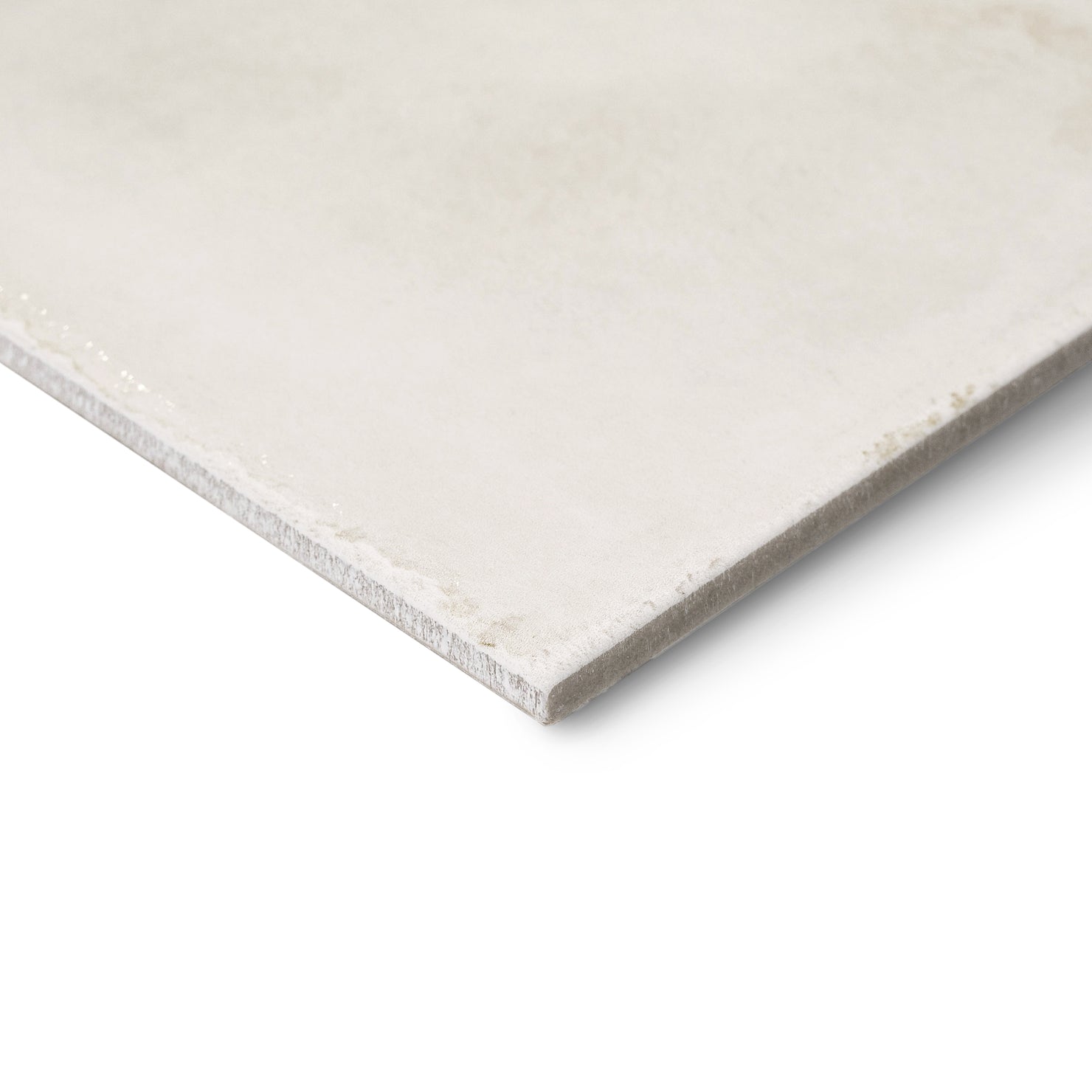

Pearl Gloss Porcelain Tile

SMALL FORMAT PORCELAIN TILE INSTALLATION GUIDE

Small Format Porcelain Tile Installation Guide

A Step by Step Guide for Professionals and DIY Enthusiasts

Reno Source

www.therenosource.com

BEFORE YOU BEGIN

Please read this entire guide before starting your installation. Porcelain tiles have unique properties including very low water absorption and higher density that require specific materials and techniques. This guide provides general recommendations and does not replace professional advice for complex installations.

1. OVERVIEW

   Small format porcelain tiles including subway tiles, mosaics, penny rounds, hexagons, and formats up to twelve inches by twelve inches offer exceptional durability and timeless style. Porcelain is fired at higher temperatures than ceramic, resulting in a denser and harder tile body with water absorption below one half of one percent. This makes porcelain ideal for high traffic areas, wet environments, and both interior and exterior applications. Because of this density, porcelain requires specific adhesives, cutting tools, and installation methods. Standard ceramic thinset will not bond reliably to porcelain. Following the methods in this guide will help ensure a professional and long lasting installation.

2. TOOLS AND MATERIALS

   Essential tools include a notched trowel sized one quarter inch by one quarter inch square notch for tiles up to twelve inches by twelve inches, or three sixteenths inch by three sixteenths inch or one quarter inch V notch for mosaics and subway tile. Additional tools include a rubber grout float, wet saw with a porcelain rated diamond blade or a manual snap cutter rated for porcelain, tile nippers, angle grinder with diamond blade, chalk line, tape measure, forty eight inch level, carpenter’s square, mixing bucket and drill with paddle, sponges, clean cloths, rubbing stone, knee pads, safety glasses, dust mask, and gloves. Materials include porcelain tile with ten to fifteen percent extra ordered for cuts and future repairs, polymer modified thinset mortar rated ANSI A118.4 or A118.15, grout with unsanded used for joints one eighth inch and narrower and sanded grout for wider joints, tile spacers sized appropriately for rectified or non rectified tile, cement backer board and fiberglass mesh tape if required, grout sealer, and painter’s tape for marking cuts and reducing chipping.

3. STEP BY STEP INSTALLATION

   Step 1 Surface Preparation

   Proper surface preparation is critical to porcelain tile performance. Because porcelain bonds differently than ceramic due to its low porosity, the substrate must be clean, flat, dry, and structurally sound. Remove all furniture, appliances, and existing flooring. Clean the subfloor thoroughly, removing debris, dust, adhesive residue, and paint. The subfloor must be at least one and one eighth inches thick to prevent flexing. Check flatness using a long straightedge. Variations greater than one eighth inch over ten feet must be corrected with self leveling compound. Repair all cracks, holes, and damaged areas. Porcelain is less forgiving of substrate imperfections than ceramic. If installing over plywood or in moisture prone areas, install cement backer board secured with screws spaced every eight inches. Tape all seams with fiberglass mesh tape embedded in thinset.

   Step 2 Planning and Layout

   Measure and mark the midpoint of each wall and snap chalk lines connecting opposite midpoints. The intersection will be the starting point. Dry fit tiles along the chalk lines from center to walls, including spacers. For mosaics or mesh backed sheets, lay out multiple sheets to confirm pattern alignment. Adjust layout so perimeter tiles are at least half a tile wide. For subway tile patterns, plan offsets carefully, with a minimum one third offset recommended to reduce lippage.

   Step 3 Applying Thinset Mortar

   Always use polymer modified thinset rated for porcelain. Standard ceramic thinset will not provide adequate bond strength. Mix thinset according to manufacturer instructions to a peanut butter like consistency and allow it to slake for ten minutes before remixing. Do not add water after slaking. Spread thinset onto a manageable section using the flat side of the trowel, then comb with the notched side at a forty five degree angle to create uniform ridges. Work in sections that can be tiled within fifteen to twenty minutes. If thinset skins over, remove and apply fresh mortar.

   Step 4 Setting the Tiles

   Begin setting tiles at the center intersection. Press each tile firmly into the mortar with a slight twisting motion to ensure full contact. Insert spacers at corners. Use one sixteenth inch to one eighth inch spacers for rectified porcelain and one eighth inch to three sixteenths inch for non rectified tile. Continue working outward from the center. Do not slide tiles into position. Check frequently with a level, as porcelain highlights lippage more than ceramic. Mix tiles from multiple boxes to blend color variation. Periodically remove a tile to verify mortar coverage. Minimum coverage is eighty percent in dry areas and ninety five percent in wet or exterior installations.

   Step 5 Cutting Tiles

   For straight cuts, use a wet saw with a porcelain rated diamond blade. Feed tiles slowly and steadily. Manual snap cutters rated for porcelain may be used on thinner tiles if the score line is deep and continuous. Applying painter’s tape along the cut line can reduce chipping. For curved or notched cuts, use tile nippers or an angle grinder with diamond blade, making shallow passes to prevent cracking. Always wear safety glasses, gloves, and a dust mask when cutting porcelain. Wet cutting methods are strongly recommended to reduce dust.

   Step 6 Grouting

   Allow thinset to cure for at least twenty four hours before grouting. Remove all spacers. Mix grout to a smooth, thick consistency. Use unsanded grout for joints one eighth inch and narrower and sanded grout for wider joints. Spread grout diagonally across tiles using a rubber float at a forty five degree angle, forcing grout fully into joints. Remove excess grout diagonally. After fifteen to twenty minutes, wipe the surface with a damp sponge using circular motions. Once grout has fully cured, typically twenty four to seventy two hours, buff away any remaining haze with a dry cloth.

   Step 7 Sealing and Finishing

   Porcelain tile generally does not require sealing due to its low porosity, but grout lines should be sealed. Allow grout to fully cure for forty eight to seventy two hours before sealing. Apply grout sealer directly to joints with a brush applicator or spray across the surface according to manufacturer instructions. Wipe excess sealer from tile surfaces. Unglazed porcelain may benefit from a penetrating sealer depending on manufacturer guidance. Reapply grout sealer annually or as needed.

4. TIPS AND WARNINGS

   Never skip the dry layout process, as it prevents costly mistakes. Always use polymer modified thinset rated for porcelain. For mesh backed mosaics, apply a thin skim coat of thinset to the back of the sheet before setting for full coverage. Clean grout residue promptly, as dried haze becomes harder to remove. Include movement joints with flexible sealant at all changes of plane, perimeter walls, and every twenty to twenty five feet in large installations per industry guidelines. Keep spare tiles for future repairs. Wear proper personal protective equipment at all times. Porcelain dust is finer than ceramic dust and requires wet cutting and proper ventilation. Keep tools and materials away from children. Consult a licensed professional for installations involving waterproofing, radiant heat, structural modifications, or code compliance.

5. CARE AND MAINTENANCE

   Sweep or vacuum regularly to prevent grit buildup. Mop with warm water and a pH neutral tile cleaner, avoiding excessive moisture. Wipe spills promptly, especially along grout lines. Reseal grout annually or as recommended. Use felt pads under furniture legs and place mats at entryways. Do not use acidic cleaners such as vinegar or citrus based products, bleach, ammonia, or abrasive scrubbers, as these can damage grout and some porcelain surfaces.

6. PRODUCT AND LIABILITY INFORMATION

   Porcelain tile varies by manufacturer, batch, and production method. Rectified and non rectified tiles require different spacing. Always test adhesives, grouts, and sealers on a sample area prior to full installation and verify ANSI compliance of all materials. This guide is provided for informational purposes only. Reno Source assumes no responsibility for injuries, damages, or losses resulting from installation. Users assume all risk associated with tile installation and should consult qualified professionals when needed.
