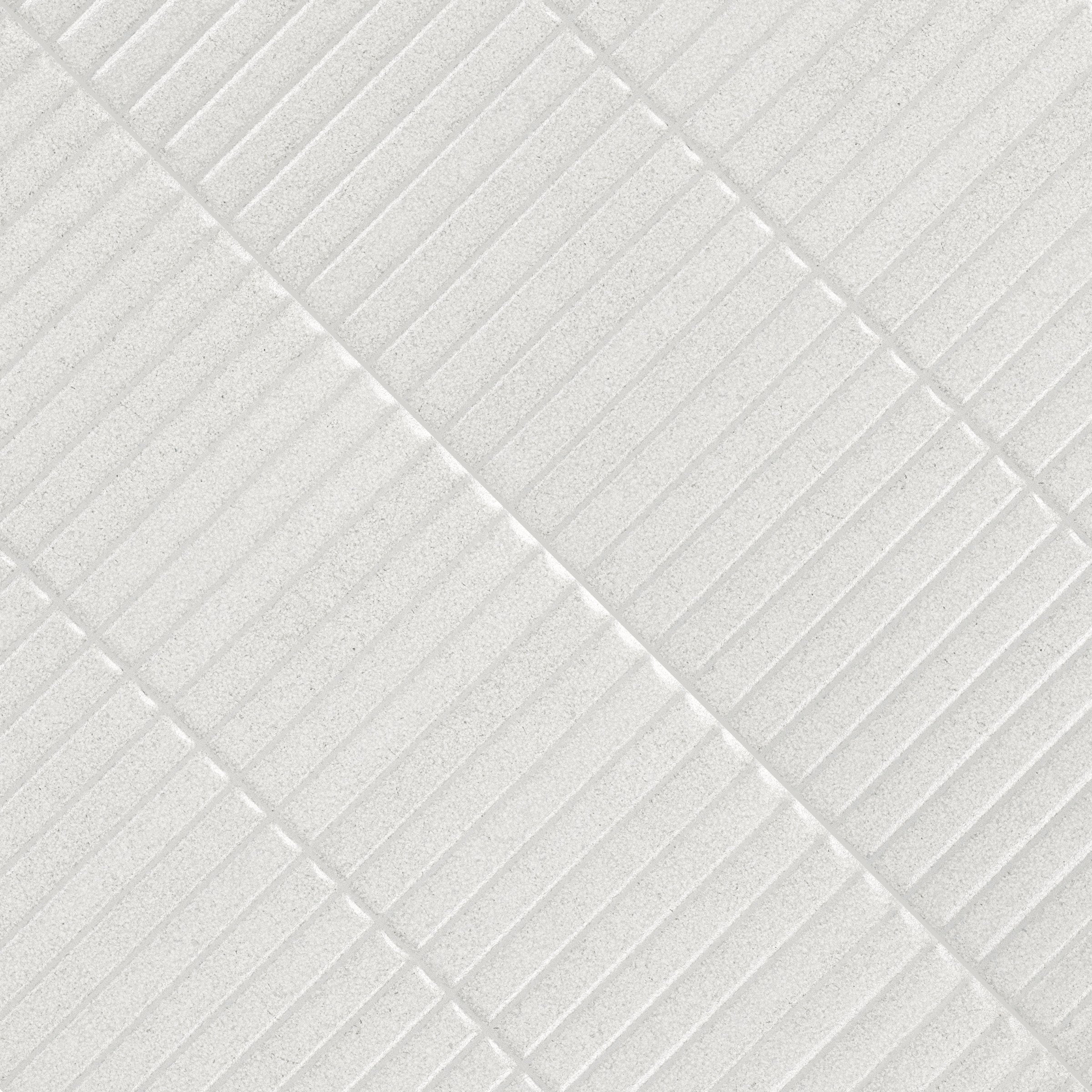

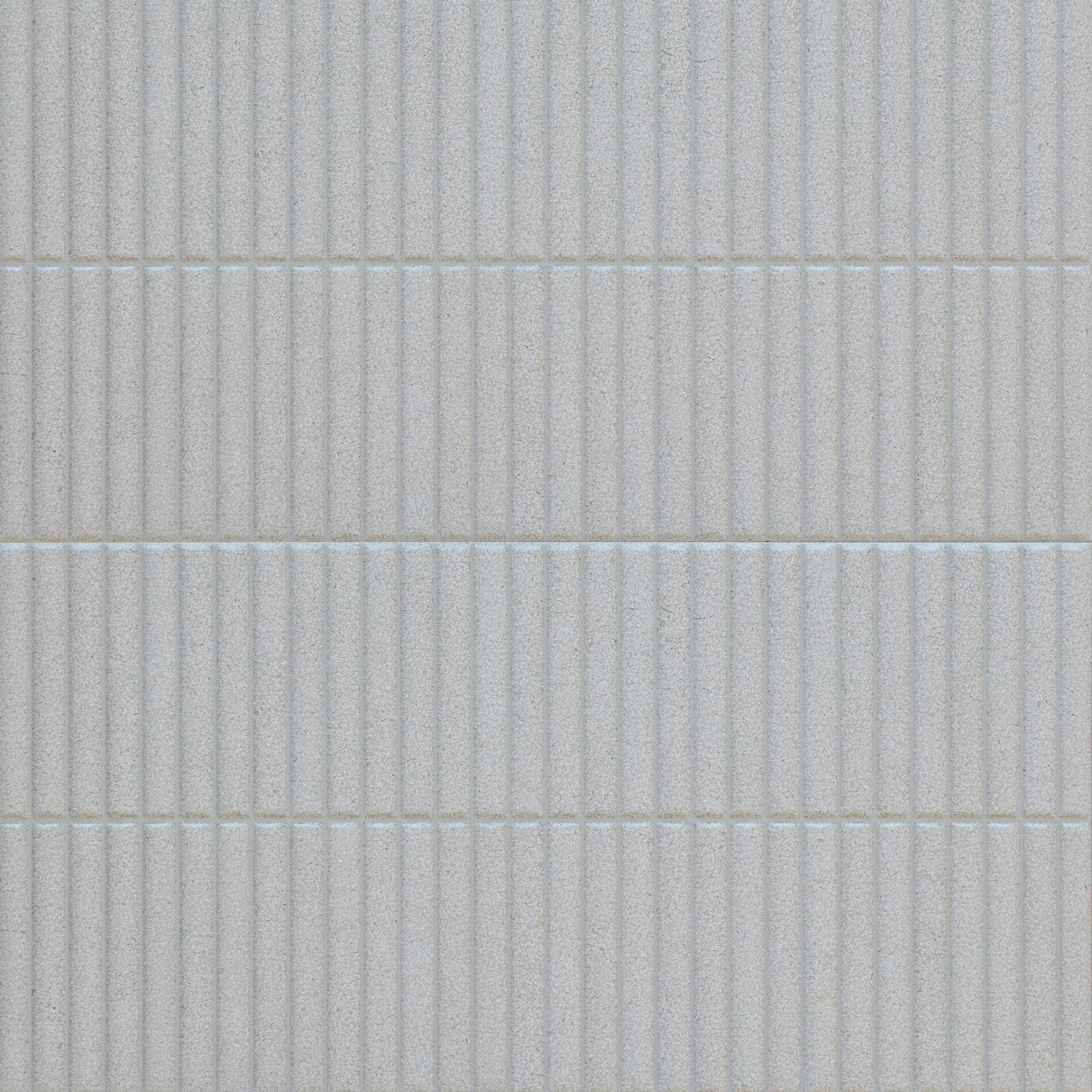

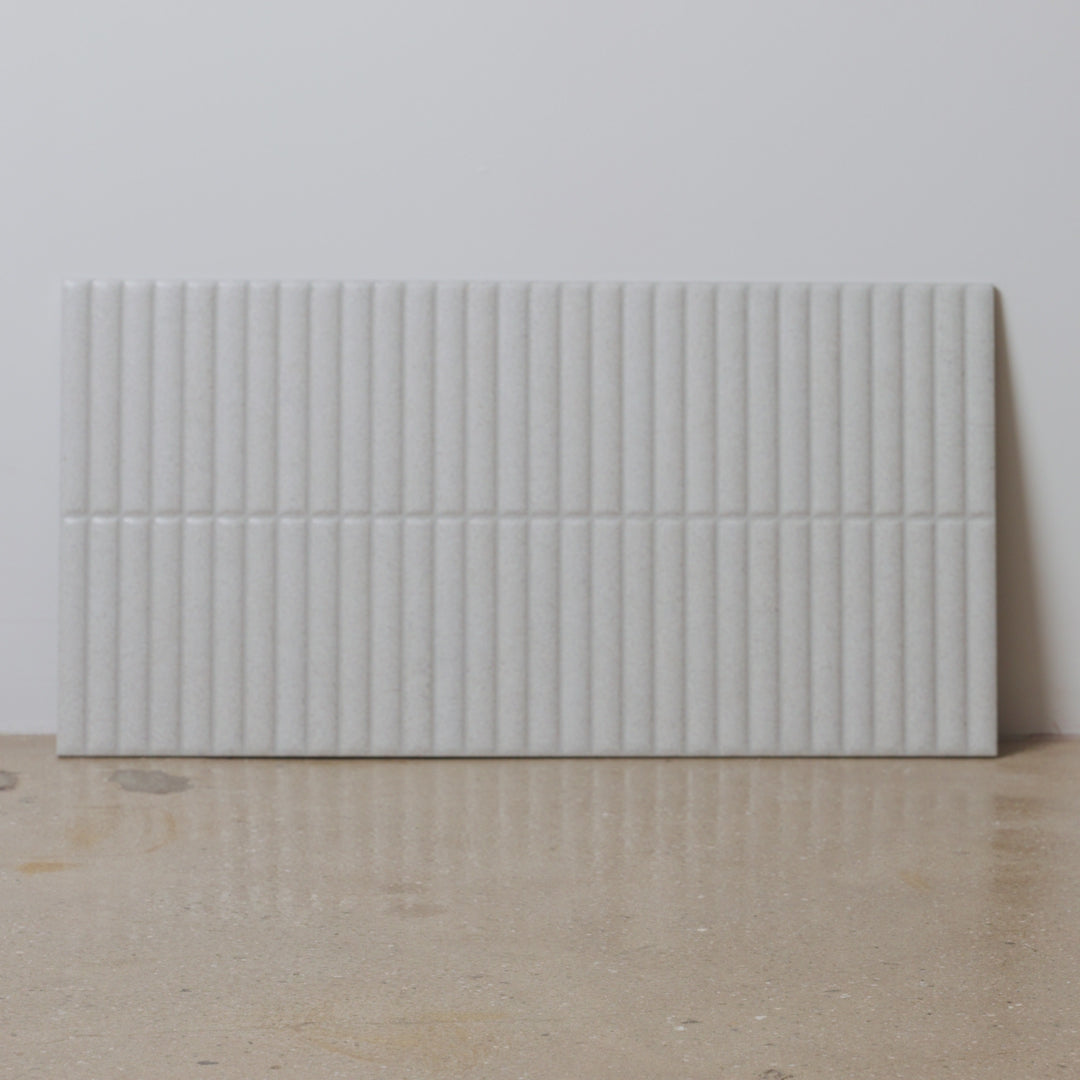

Pearl Deco Hammered Limestone Look Porcelain Tile

LARGE FORMAT PORCELAIN TILE INSTALLATION GUIDE

Large Format Porcelain Tile Installation Guide

Covers tiles with any side 15 inches or larger

Reno Source

www.therenosource.com

BEFORE YOU BEGIN

Large format porcelain tile installation involves tighter tolerances, heavier materials, and specialized techniques. These installations amplify even small substrate imperfections and require strict adherence to industry standards. Less experienced installers are strongly encouraged to work alongside a qualified professional. The methods in this guide align with Tile Council of North America guidelines and ANSI specifications.

1. OVERVIEW

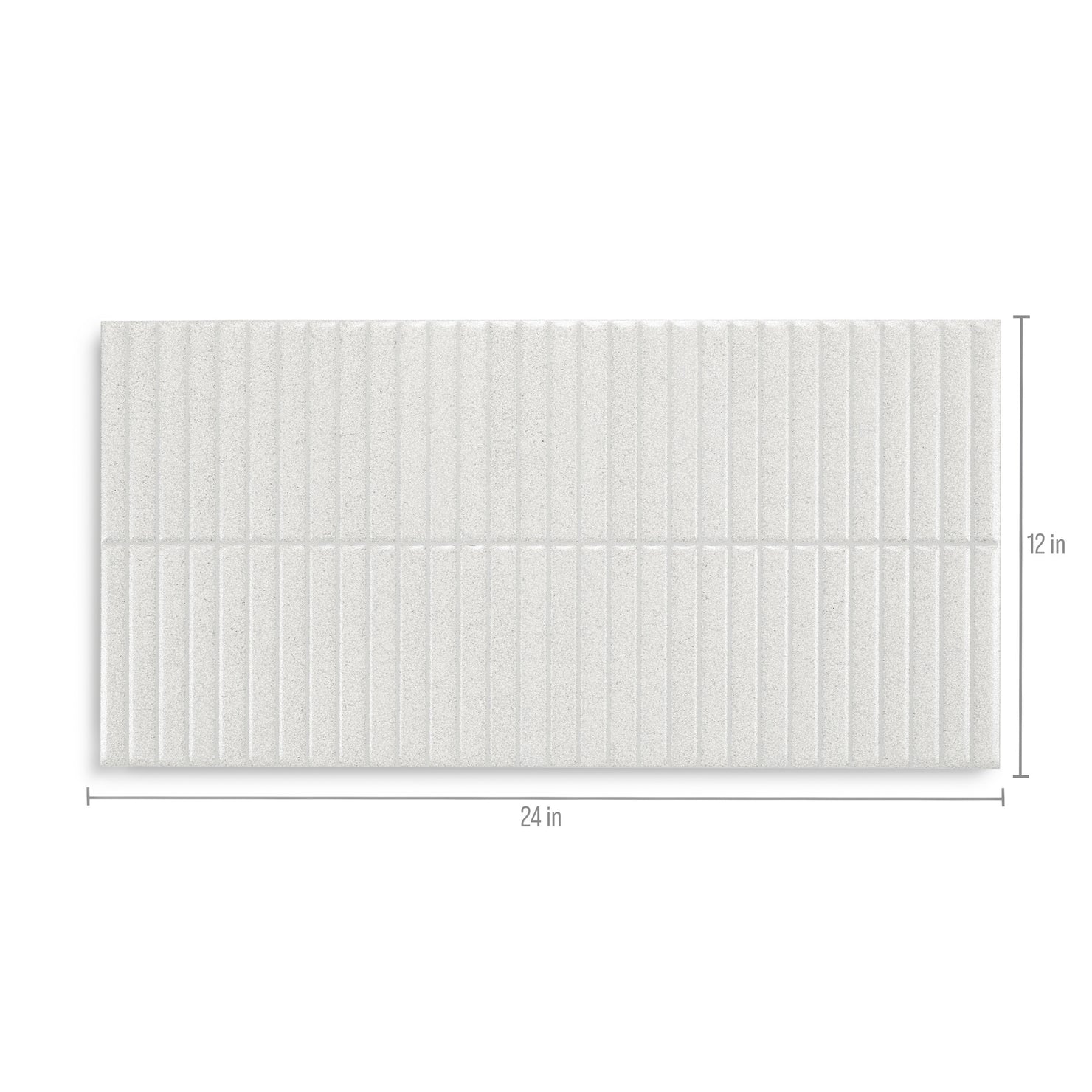

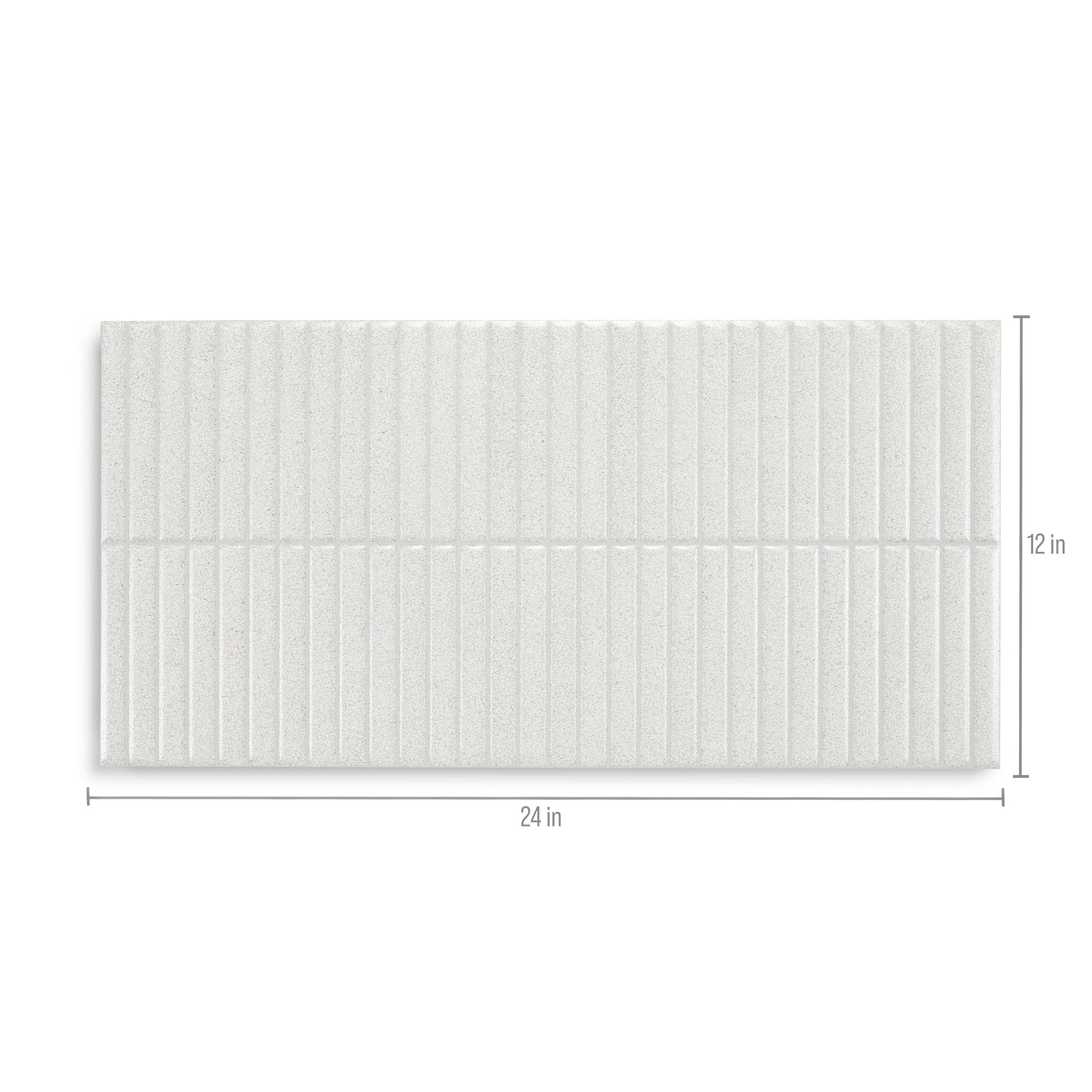

   Large format porcelain tiles, defined as any tile with at least one side measuring 15 inches or more, create expansive, modern surfaces with fewer grout lines and strong visual impact. Common sizes include 12 by 24, 24 by 48, and larger panel formats used on floors and walls. Because of their size and rigidity, these tiles require a flatter substrate, specialized large and heavy tile mortars, careful handling, and precise installation methods. This guide outlines the full process required to achieve a durable, professional result.

   Key specifications include substrate flatness no greater than one eighth inch over ten feet and no more than one sixteenth inch over any twenty four inch span, use of large and heavy tile polymer modified mortar, minimum mortar coverage of eighty percent in dry areas and ninety five percent in wet or exterior areas, minimum grout joint width of one eighth inch for rectified tiles and three sixteenths inch for non rectified tiles, maximum running bond offset of thirty three percent for tiles over eighteen inches, floor deflection limited to L three sixty, and required movement joints at perimeters and every twenty to twenty five feet in interior installations.

2. TOOLS AND MATERIALS

   Essential tools include a large notch trowel such as one half inch square notch, U notch, or slant notch per mortar manufacturer recommendation, rubber grout float, wet saw with a porcelain rated diamond blade, tile leveling system using clip and wedge or screw type, suction cup lifters rated for tile weight, long straightedge or level a minimum of six feet, chalk line or laser level, tape measure, mixing bucket and drill with paddle attachment, rubber mallet, sponges and clean cloths, grout haze remover, knee pads, safety glasses, dust mask, and cut resistant gloves. Materials include large format porcelain tiles with ten to fifteen percent extra ordered for cuts and future repairs, large and heavy tile polymer modified mortar meeting ANSI A118.4 or A118.15, grout with sanded used for joints wider than one eighth inch and unsanded for narrower joints, tile spacers typically one eighth to three sixteenths inch, cement backer board or uncoupling membrane if required, crack isolation membrane recommended for concrete substrates, grout sealer, flexible silicone or urethane sealant for movement joints, and self leveling underlayment if substrate correction is needed.

3. STEP BY STEP INSTALLATION

   Step 1 Surface Preparation

   Surface preparation is the most critical factor in large format tile installation. Remove all furniture, appliances, and existing flooring. Clean the subfloor thoroughly to remove debris, dust, adhesive residue, paint, and curing compounds. The surface must meet strict flatness tolerances of no more than one eighth inch over ten feet and no more than one sixteenth inch over any twenty four inch span. Use self leveling compound to correct low areas and grind high spots. The subfloor must be structurally sound and rigid. Wood framed floors must meet a minimum total thickness of one and one eighth inches and not exceed L three sixty deflection. Repair cracks, holes, and damaged areas before proceeding. Install cement backer board or an approved uncoupling membrane over plywood subfloors and tape all seams. For concrete substrates, installation of a crack isolation membrane is strongly recommended. Apply primer if required by the mortar manufacturer.

   Step 2 Planning and Layout

   Careful layout planning is essential because large tiles are difficult to reposition once set. Measure and mark the midpoint of each wall and snap chalk lines or use a laser level to establish the starting point. Dry fit tiles from the center outward including spacers. For rectangular tiles, the running bond offset must not exceed one third of the tile length to minimize lippage caused by natural tile warpage. Ensure perimeter cuts are at least half a tile width and plan transitions, doorways, and focal points carefully. Movement joints must be planned at all perimeters, changes in plane, every twenty to twenty five feet in the field, and directly over substrate control joints.

   Step 3 Handling and Cutting

   Always use suction cup lifters when moving large format tiles. Never carry tiles flat by the edges as they can snap under their own weight. Transport tiles vertically whenever possible and use two installers for very large panels. Cut tiles using a wet saw with a porcelain rated diamond blade. Support the full tile during cutting and feed slowly. Manual snap cutters are not suitable. Smooth cut edges with a rubbing stone. Always wear safety glasses, hearing protection, dust mask, and cut resistant gloves when cutting porcelain.

   Step 4 Applying Mortar

   Always use polymer modified large and heavy tile mortar. Standard thinset is not suitable. Spread a scratch coat of mortar onto the substrate and comb with the notched trowel at a forty five degree angle creating straight, parallel ridges in one direction. Back butter each tile with a thin even coat, combing ridges perpendicular to the substrate ridges to collapse air pockets. Work in small sections and periodically remove a tile to verify coverage. Mortar coverage must meet at least eighty percent in dry interior areas and ninety five percent in wet or exterior areas with full support at all edges.

   Step 5 Setting the Tiles

   Lower tiles into place using suction cups and press firmly with a slight sliding motion to collapse mortar ridges. Do not twist or shift tiles once placed. Insert spacers and install leveling system clips between adjacent tiles to control lippage. Continue outward from the starting point, checking frequently with a straightedge. Tap gently with a rubber mallet if needed. Clean excess mortar from joints and tile surfaces immediately. Do not walk on freshly set tiles and allow a minimum of twenty four hours cure time.

   Step 6 Grouting

   Allow mortar to cure at least twenty four hours and remove leveling clips. Mix grout to a smooth consistency and apply diagonally using a rubber float. Use sanded grout for joints one eighth inch or wider and unsanded grout for narrower joints. Work in small sections, scrape excess diagonally, then wipe with a damp sponge after fifteen to twenty minutes. Buff remaining haze after full cure, typically twenty four to seventy two hours. Do not grout movement joints or perimeter joints.

   Step 7 Sealing and Finishing

   Allow grout to cure forty eight to seventy two hours before sealing. Apply grout sealer to joints using a brush applicator and wipe excess from tile surfaces. Porcelain tile itself typically does not require sealing. Fill all movement and perimeter joints with flexible silicone or urethane sealant color matched to grout. Perform a final inspection to confirm flatness, joint consistency, and cleanliness.

4. TIPS AND WARNINGS

   Always verify substrate flatness before setting tile. Use a quality leveling system on all large format installations. Never skip back buttering. Comb mortar in straight lines only and use cross directional troweling. Respect the one third offset rule for rectangular tiles. Honor all substrate joints with movement joints in the tile surface. Clean as you go and keep spare tiles for future repairs.

5. CARE AND MAINTENANCE

   Sweep or vacuum regularly to remove grit. Mop with a pH neutral tile cleaner and avoid excessive water. Wipe spills promptly, especially on grout lines. Reseal grout annually or as recommended. Use felt pads under furniture and mats at entryways. Do not use acidic cleaners, bleach, ammonia, or abrasive scrubbers on porcelain tile or grout.

6. PRODUCT AND LIABILITY INFORMATION

   Porcelain tiles may exhibit warpage and dimensional variation within industry tolerances. Always test adhesives, grouts, and sealers on a sample area before full installation. This guide references TCNA Handbook methods, ANSI A108 A118 A137 standards, and TCNA EJ171 for movement joints. This guide is provided for informational purposes only. Reno Source assumes no responsibility for injuries, damages, or losses resulting from installation. Users assume all risk and should consult qualified professionals when needed.
